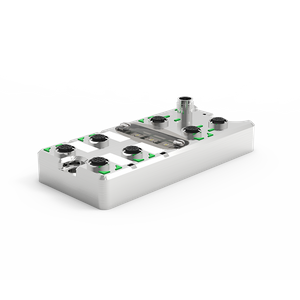

The IACM-PX series bus module is an RFID controller that offers standard industrial bus protocols, supporting ProfiNet, EtherCAT, EtherNet/IP, and MODBUS TCP protocols. It includes two M12 T- CODE power supply interfaces, two M12 D-CODE 4-PIN bus interfaces, and either 2 or 4 M12 A-CODE RFID reader and writer interfaces. The housing is made of a sturdy zinc alloy material, featuring wide connection range, strong communication capability, good environmental adaptability, and a high level of protection.
Supports ProfiNet, EtherCAT, EtherNet/IP, and MODBUS TCP protocols.
Can connect multiple RFID readers/writers to work independently simultaneously.
IP67 protection level, capable of adapting to harsh conditions like oil contamination, dust, and humidity.
Dual network ports, integrated with switch function, can form staype and tree-type networks.
Power input features reverse connection protection and 3000W surge protection;
The RFID port has anti-reverse and overvoltage/overcurrent protection
| Minimum Order Quantity | one |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | IACM-P2-PN | IACM-P2-ECT | IACM-P2-EIP | IACM-P2-EN |
| Communication protocol | ProfiNet | EtherCAT | EtherNet/IP | MODBUS TCP |
Shell Material | Aluminum Alloy | |||
| Color | Silver/ Black | |||
| Power supply | Rated voltage | 18~30VDC | ||
| Rated current | Imax<=0.3A@24V(Bus module own current) | |||
| Power supply mode | Independent dual power supply (system power UB, load power UL) | |||
| Power connector | T-CODE male/female 4 pins | |||
| Power protection | With reverse polarity protection, 3000W surge protection | |||
| Communication cable length | Max=100m | |||
| Communication interface | D-CODE M12 female, 4-pin | |||
| Network interface | Both network ports have integrated switch functions and comply with IEE802.3 standards | Single network port | ||
| Network topology | Star topology, tree topology | Star topology | Star topology, tree topology | Star topology |
| Number of RFIDs | 2 independent channels | |||
| RFID interface | A-CODE M12 female, 5-pin | |||
| Load capacity | VOUT=24V±20%,LOUT<=0.7A | |||
| Circuit protection | Power supply anti-reverse polarity, overvoltage and overcurrent protection | |||
| Fault Diagnosis | Supports Fault Diagnosis | |||
| Working temp. | -25°C~+70°C | |||
| Storage temperature | -40°C~+85°C | |||
| Degree of protection | IP67 | |||
| Product certification | FCC CE RoSH2.0 | |||
The IACM-PX series bus module is an RFID controller that offers standard industrial bus protocols, supporting ProfiNet, EtherCAT, EtherNet/IP, and MODBUS TCP protocols. It includes two M12 T- CODE power supply interfaces, two M12 D-CODE 4-PIN bus interfaces, and either 2 or 4 M12 A-CODE RFID reader and writer interfaces. The housing is made of a sturdy zinc alloy material, featuring wide connection range, strong communication capability, good environmental adaptability, and a high level of protection.
Supports ProfiNet, EtherCAT, EtherNet/IP, and MODBUS TCP protocols.
Can connect multiple RFID readers/writers to work independently simultaneously.
IP67 protection level, capable of adapting to harsh conditions like oil contamination, dust, and humidity.
Dual network ports, integrated with switch function, can form staype and tree-type networks.
Power input features reverse connection protection and 3000W surge protection;
The RFID port has anti-reverse and overvoltage/overcurrent protection
| Minimum Order Quantity | one |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | IACM-P2-PN | IACM-P2-ECT | IACM-P2-EIP | IACM-P2-EN |
| Communication protocol | ProfiNet | EtherCAT | EtherNet/IP | MODBUS TCP |
Shell Material | Aluminum Alloy | |||
| Color | Silver/ Black | |||
| Power supply | Rated voltage | 18~30VDC | ||
| Rated current | Imax<=0.3A@24V(Bus module own current) | |||
| Power supply mode | Independent dual power supply (system power UB, load power UL) | |||
| Power connector | T-CODE male/female 4 pins | |||
| Power protection | With reverse polarity protection, 3000W surge protection | |||
| Communication cable length | Max=100m | |||
| Communication interface | D-CODE M12 female, 4-pin | |||
| Network interface | Both network ports have integrated switch functions and comply with IEE802.3 standards | Single network port | ||
| Network topology | Star topology, tree topology | Star topology | Star topology, tree topology | Star topology |
| Number of RFIDs | 2 independent channels | |||
| RFID interface | A-CODE M12 female, 5-pin | |||
| Load capacity | VOUT=24V±20%,LOUT<=0.7A | |||
| Circuit protection | Power supply anti-reverse polarity, overvoltage and overcurrent protection | |||
| Fault Diagnosis | Supports Fault Diagnosis | |||
| Working temp. | -25°C~+70°C | |||
| Storage temperature | -40°C~+85°C | |||
| Degree of protection | IP67 | |||
| Product certification | FCC CE RoSH2.0 | |||
