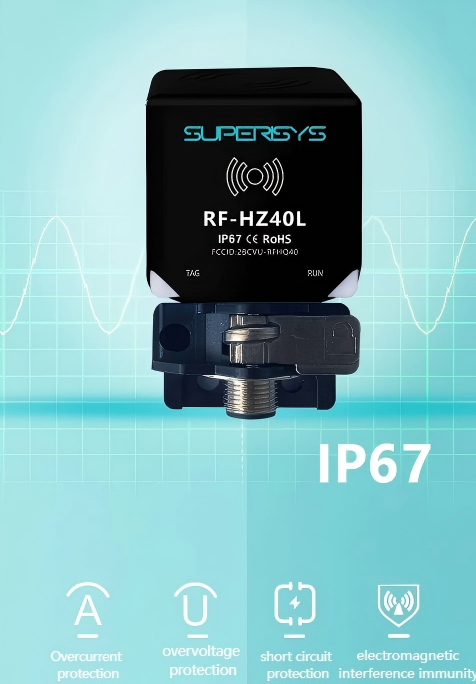

High frequency (13.56MHz) performance readers are RFID devices optimized for industrial applications, significantly surpassing conventional HF readers in terms of recognition reliability, communication rate and environmental adaptability.
Product application scenarios

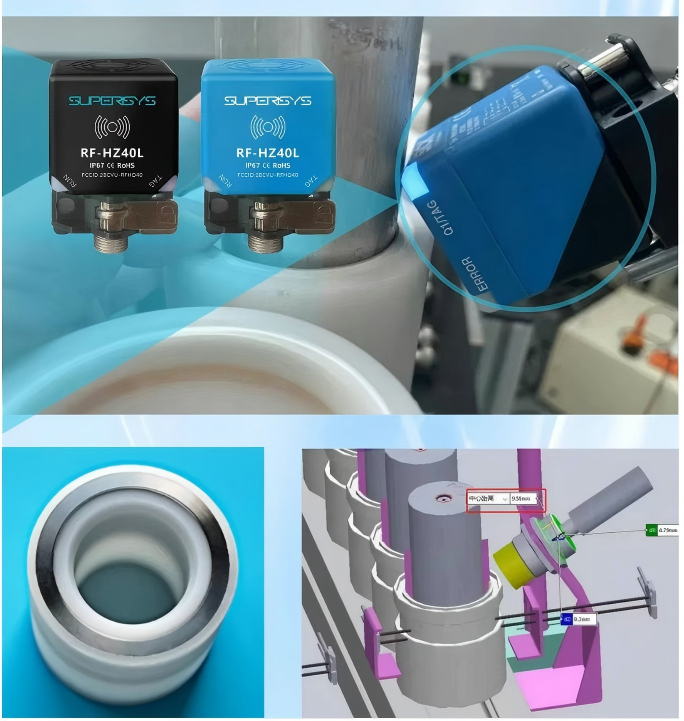

New Energy
Automotive
Photovoltaic
Product Features
High frequency (13.56MHz) performance readers are RFID devices optimized for industrial applications, significantly surpassing conventional HF readers in terms of recognition reliability, communication rate and environmental adaptability.
Product application scenarios
New Energy
Automotive
Photovoltaic
Product Description

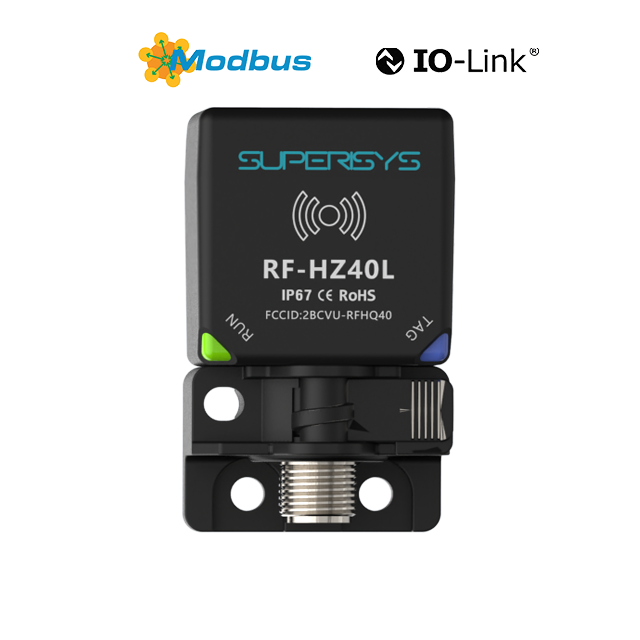

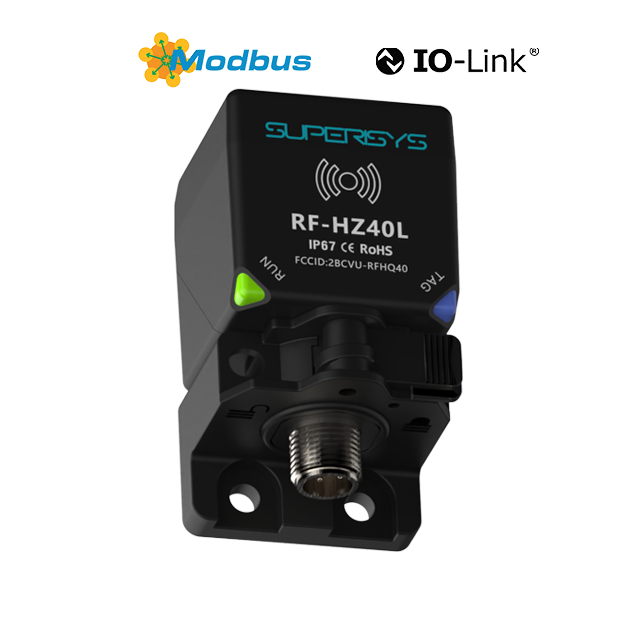

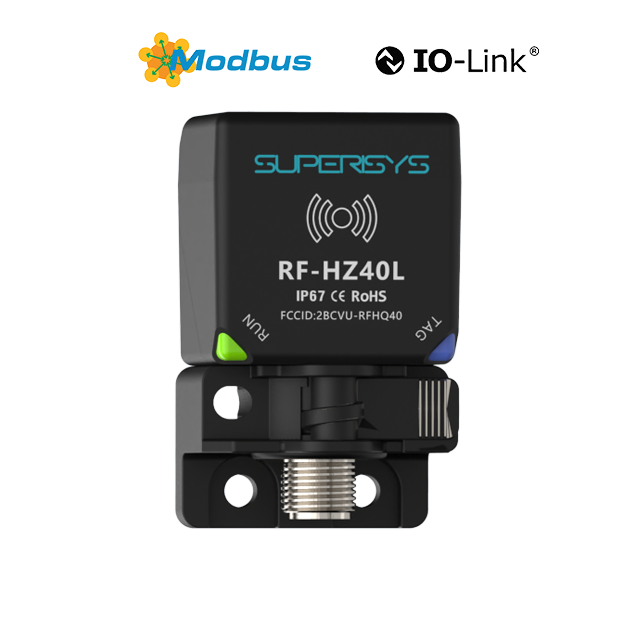

product model
RF-HZ40L-R4
RF-HZ40L-TP
wireless protocol
ISO 15693
working frequency
13.56MHz
output power
27.5dBm
wireless speed
26.48Kbit/s
Read distance
0~100(related to labels)
communication interface
RS485
Ethernet
communication protocol
MODBUS RTU
MODBUS TCP
Communication rate
9600 ~ 115200bit/s
10/100M Adaptive
Supply voltage
9~30VDC
Average current
<0.07A@24VDC
pilot lamp
4 LED indicators
Form factor
40x40x66mm
Fixed type
2pcs M5 Screw holes
Housing material
PC+ABS

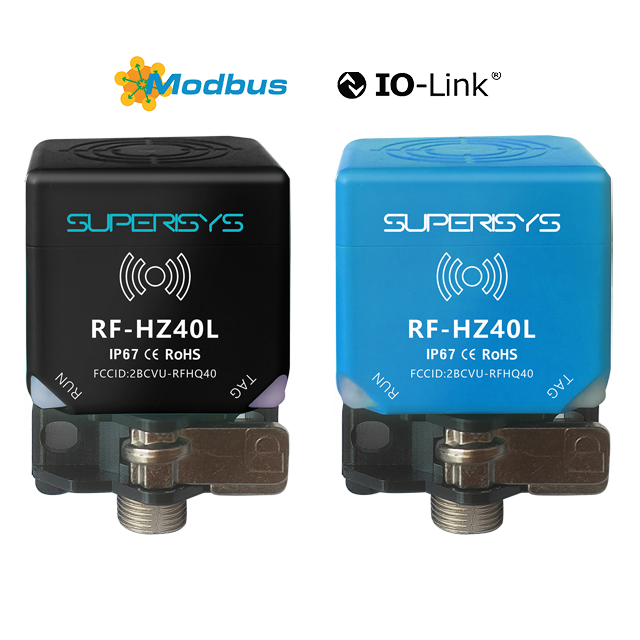

Shell color
black+blue
Total weight
About 110g
Operating temperature
-25℃～70℃
Storage temperature
-25℃～85℃
Humidity
5%～95%RH(No condensation)
Waterproof and dustproof rating
IP67, EN 60529
Vibration resistant
2 mm (f= 5…29.5 Hz ) , EN 60068-2-6
7 gn (f= 29.5…150 Hz) , EN 60068-2-6
Conducted immunity (CS)
3V, over A class (including main frequency) 10V, over A class (except main frequency)
Electrostatic discharge immunity ESD
Contact discharge, 8KV, over class A Air discharge, 15KV, over class A IEC 61000-4-2
Waterproof and dustproof level
IP67,EN60529
Certificate
FCC 、CE
ROHS directive
2011/65/EU,2015/863/EU
Delivery and Payments
Parameter
Specification
Minimum Order Quantity
one
Price
The price is negotiable in large quantities
Delivery Time
1-2 work days
Stock
In Stock
Description
high frequency, RFID reader, Performance integrated reader, RFIDCarrier body
Payment Terms
T/T, Western Union
Supply Ability
1000 per day
Product Description
product model
RF-HZ40L-R4
RF-HZ40L-TP
wireless protocol
ISO 15693
working frequency
13.56MHz
output power
27.5dBm
wireless speed
26.48Kbit/s
Read distance
0~100(related to labels)
communication interface
RS485
Ethernet
communication protocol
MODBUS RTU
MODBUS TCP
Communication rate
9600 ~ 115200bit/s
10/100M Adaptive
Supply voltage
9~30VDC
Average current
<0.07A@24VDC
pilot lamp
4 LED indicators
Form factor
40x40x66mm
Fixed type
2pcs M5 Screw holes
Housing material
PC+ABS
Shell color
black+blue
Total weight
About 110g
Operating temperature
-25℃～70℃
Storage temperature
-25℃～85℃
Humidity
5%～95%RH(No condensation)
Waterproof and dustproof rating
IP67, EN 60529
Vibration resistant
2 mm (f= 5…29.5 Hz ) , EN 60068-2-6
7 gn (f= 29.5…150 Hz) , EN 60068-2-6
Conducted immunity (CS)
3V, over A class (including main frequency) 10V, over A class (except main frequency)
Electrostatic discharge immunity ESD
Contact discharge, 8KV, over class A Air discharge, 15KV, over class A IEC 61000-4-2
Waterproof and dustproof level
IP67,EN60529
Certificate
FCC 、CE
ROHS directive
2011/65/EU,2015/863/EU
Delivery and Payments
Parameter
Specification
Minimum Order Quantity
one
Price
The price is negotiable in large quantities
Delivery Time
1-2 work days
Stock
In Stock
Description
high frequency, RFID reader, Performance integrated reader, RFIDCarrier body
