An RFID tag RF-HZMTY300-2K is embedded in each flower basket. An RFID reader RF-HZ50L-R4 product, along with an industrial RFID bus module, is installed at the loading/unloading and transfer points of each processing machine in each process step. When the carrier arrives at the loading/unloading or transfer point, the RFID reader reads the unique information of the RFID tag in the flower basket. Combined with the MES management system, the product information of the silicon wafers in the flower basket is obtained, realizing accurate tracking and effective management of the entire silicon wafer production process.

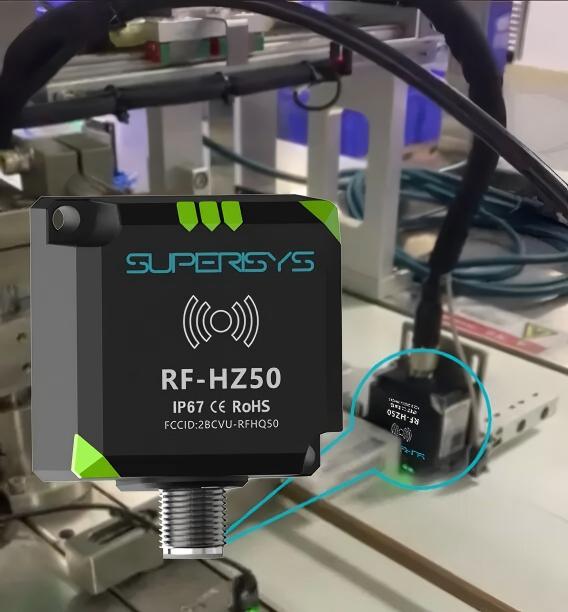

Healthcare industry：
Used for identifying and writing production process flows for medical product production lines, enabling product processing guidance and full-process quality traceabilit.
Electronic products packaging production line

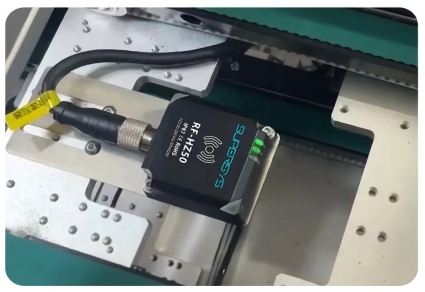

Mobile phone packaging production line
Mobile phone packaging production line
Non-contact penetration reading: No need to open the box to scan; packaging boxes pass through seamlessly.
Millisecond-level processing: Recognition as fast as 10ms, far surpassing manual processing efficiency.
Dynamic data writing: Process status and component information are updated in real time, giving the packaging box "memory."
Economic benefits
Product Introduction
Application
Photovoltaic New Energy
An RFID tag RF-HZMTY300-2K is embedded in each flower basket. An RFID reader RF-HZ50L-R4 product, along with an industrial RFID bus module, is installed at the loading/unloading and transfer points of each processing machine in each process step. When the carrier arrives at the loading/unloading or transfer point, the RFID reader reads the unique information of the RFID tag in the flower basket. Combined with the MES management system, the product information of the silicon wafers in the flower basket is obtained, realizing accurate tracking and effective management of the entire silicon wafer production process.
Healthcare industry：
Used for identifying and writing production process flows for medical product production lines, enabling product processing guidance and full-process quality traceabilit.

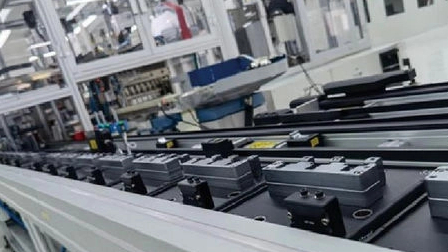

Electronic products packaging production line
Mobile phone packaging production line
Mobile phone packaging production line
Non-contact penetration reading: No need to open the box to scan; packaging boxes pass through seamlessly.
Millisecond-level processing: Recognition as fast as 10ms, far surpassing manual processing efficiency.
Dynamic data writing: Process status and component information are updated in real time, giving the packaging box "memory."
Economic benefits

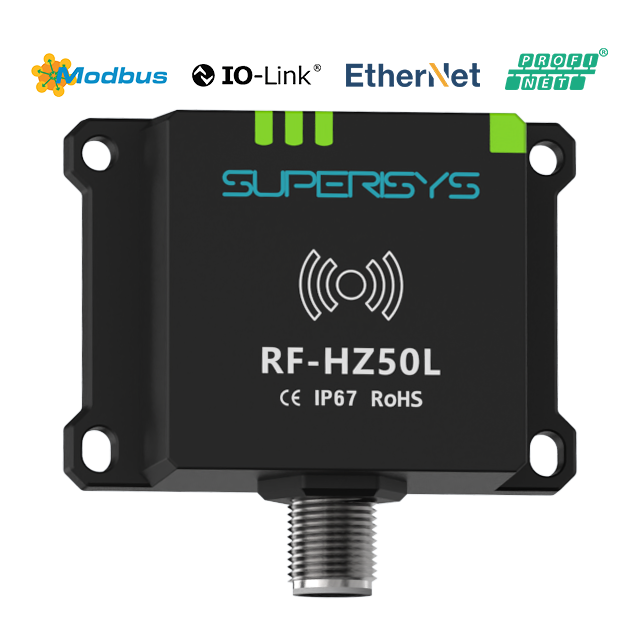

Parameters:
product model
RF-HZ50L-R4
RF-HZ50L-TP
RF-HZ50L-IOL
wireless protocol
ISO 15693
working frequency
13.56MHz
output power
27.5dBm
wireless speed
26.48Kbit/s
Read distance
0~80mm(related to labels)
communication interface
RS485
Ethernet
IO Link
communication protocol
MODBUS RTU
MODBUS TCP
IO Link V1.1
Communication rate
9600 ~ 115200bit/s
10/100M Adaptive
230.4kbps
Supply voltage
9~30VDC
Average current
<0.07A@24VDC
pilot lamp
4 LED indicators
Form factor
68.4*50*30mm
Fixed type
4pcs*M4 Screw
Housing material
PC+ABS
Product interface
M12 Acode 5 pin male
M12 Acode 8pin male
M12 Acode 5 pin male
Shell color
black
Total weight
90g
Operating temperature
-25℃～70℃
Storage temperature
-40℃～85℃
humidity
5%～95%RH(No condensation)
Waterproof and dustproof rating
IP67, EN 60529
Vibration resistant
2 mm (f= 5…29.5 Hz ) , EN 60068-2-6
7 gn (f= 29.5…150 Hz) , EN 60068-2-6
Conducted immunity (CS)
3V, over A class (including main frequency) 10V, over A class (except main frequency)
Electrostatic discharge immunity ESD
Contact discharge, 8KV, over class A
Air discharge 15KV, over class A IEC 61000-4-2
Certificate
FCC CE
ROHS directive
2011/65/EU,2015/863/EU
Payment & Shipping Terms
Parameter
Specification
Minimum Order Quantity
one
Price
receive bargaining
Delivery Time
1-2 work days
Payment Terms
T/T, Western Union
Supply Ability
1000 per day
Parameters:
product model
RF-HZ50L-R4
RF-HZ50L-TP
RF-HZ50L-IOL
wireless protocol
ISO 15693
working frequency
13.56MHz
output power
27.5dBm
wireless speed
26.48Kbit/s
Read distance
0~80mm(related to labels)
communication interface
RS485
Ethernet
IO Link
communication protocol
MODBUS RTU
MODBUS TCP
IO Link V1.1
Communication rate
9600 ~ 115200bit/s
10/100M Adaptive
230.4kbps
Supply voltage
9~30VDC
Average current
<0.07A@24VDC
pilot lamp
4 LED indicators
Form factor
68.4*50*30mm
Fixed type
4pcs*M4 Screw
Housing material
PC+ABS
Product interface
M12 Acode 5 pin male
M12 Acode 8pin male
M12 Acode 5 pin male
Shell color
black
Total weight
90g
Operating temperature
-25℃～70℃
Storage temperature
-40℃～85℃
humidity
5%～95%RH(No condensation)
Waterproof and dustproof rating
IP67, EN 60529
Vibration resistant
2 mm (f= 5…29.5 Hz ) , EN 60068-2-6
7 gn (f= 29.5…150 Hz) , EN 60068-2-6
Conducted immunity (CS)
3V, over A class (including main frequency) 10V, over A class (except main frequency)
