With the continuous upgrading of global oral health needs, the popularization of digital orthodontic technology has driven industry transformation. Invisible braces, with their core advantages of aesthetics, comfort and convenience, have become the first choice for hundreds of millions of patients with malocclusion. As a "one-size-fits-one" personalized medical product, each invisible brace needs to be accurately customized based on the patient's exclusive oral data. Its production process includes multiple precision procedures such as 3D scanning and modeling, 3D printing, thermoforming, laser cutting, cleaning and quality inspection, which puts extremely high requirements on production accuracy, data traceability and personalized matching.
Currently, automated production lines for invisible braces have gradually replaced traditional manual operations. However, there are still many pain points in key links such as parallel production of multi-batch personalized orders and precise full-process data management, which restrict the large-scale development and quality improvement of the industry. Focusing on the core technological advantages of industrial RFID hardware, Superisys has launched a targeted industrial RFID hardware solution, successfully solving the production management problems for a leading domestic invisible orthodontic enterprise. Relying on high-performance RFID hardware products, it helps the enterprise achieve full-life-cycle closed-loop management from oral data import to finished brace delivery, efficiently balancing large-scale production efficiency and personalized medical quality, and injecting core motivation into the digital transformation of the invisible orthodontic industry.
The production of invisible braces is the in-depth integration of stomatology, materials science, 3D printing technology and intelligent manufacturing. It not only needs to meet the personalized diagnosis and treatment needs of "one plan per brace", but also realize large-scale standardized production. The problem of insufficient adaptability between traditional management models and automated production lines has become increasingly prominent. The specific pain points are as follows:

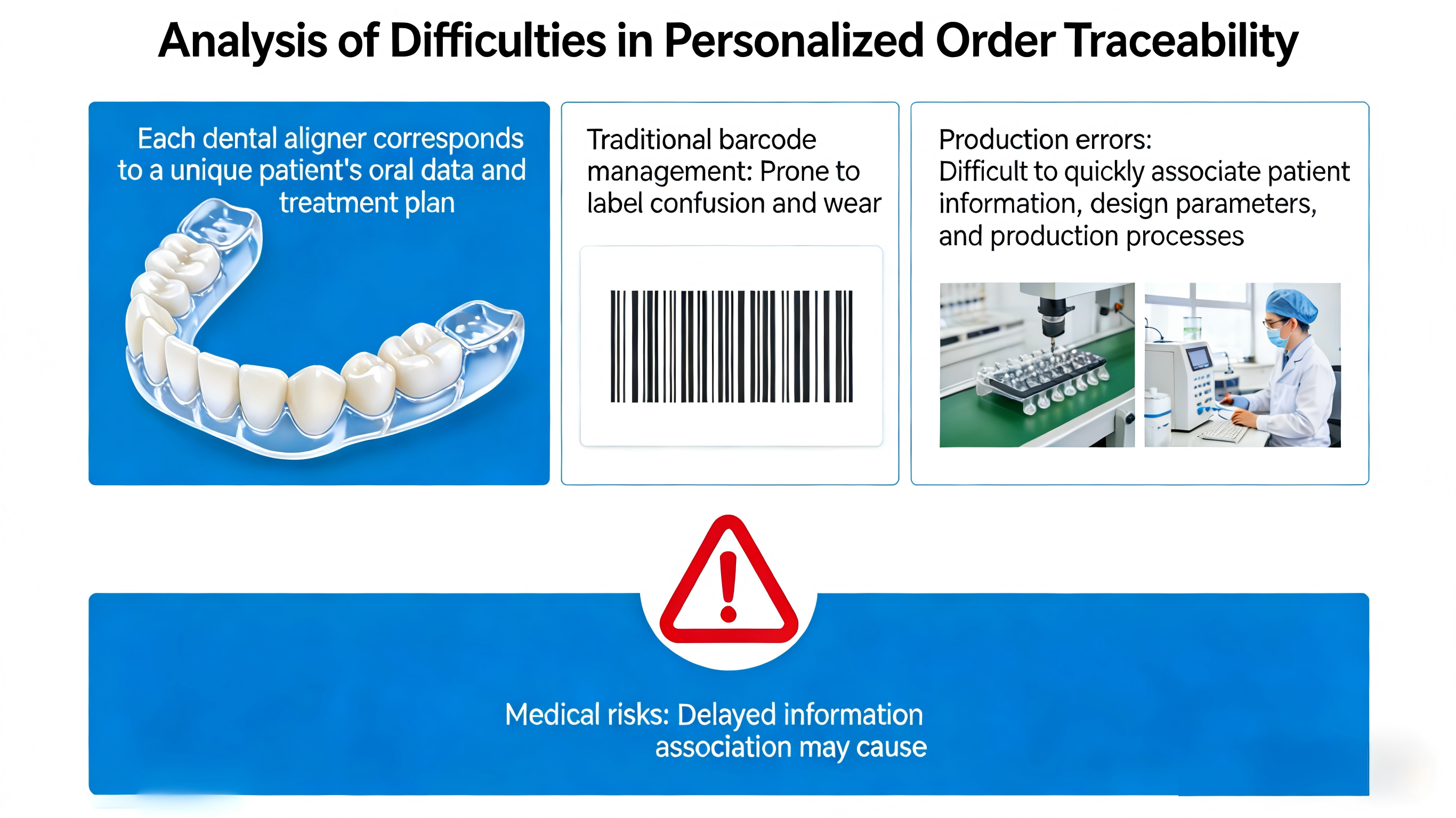

Difficult traceability of personalized orders: Each brace corresponds to unique patient oral data and treatment plans. The traditional barcode management model is prone to label confusion, wear and tear, and loss. Once a production error occurs, it is difficult to quickly associate patient information, design parameters and production processes in various links, which may lead to medical safety risks and affect brand reputation.

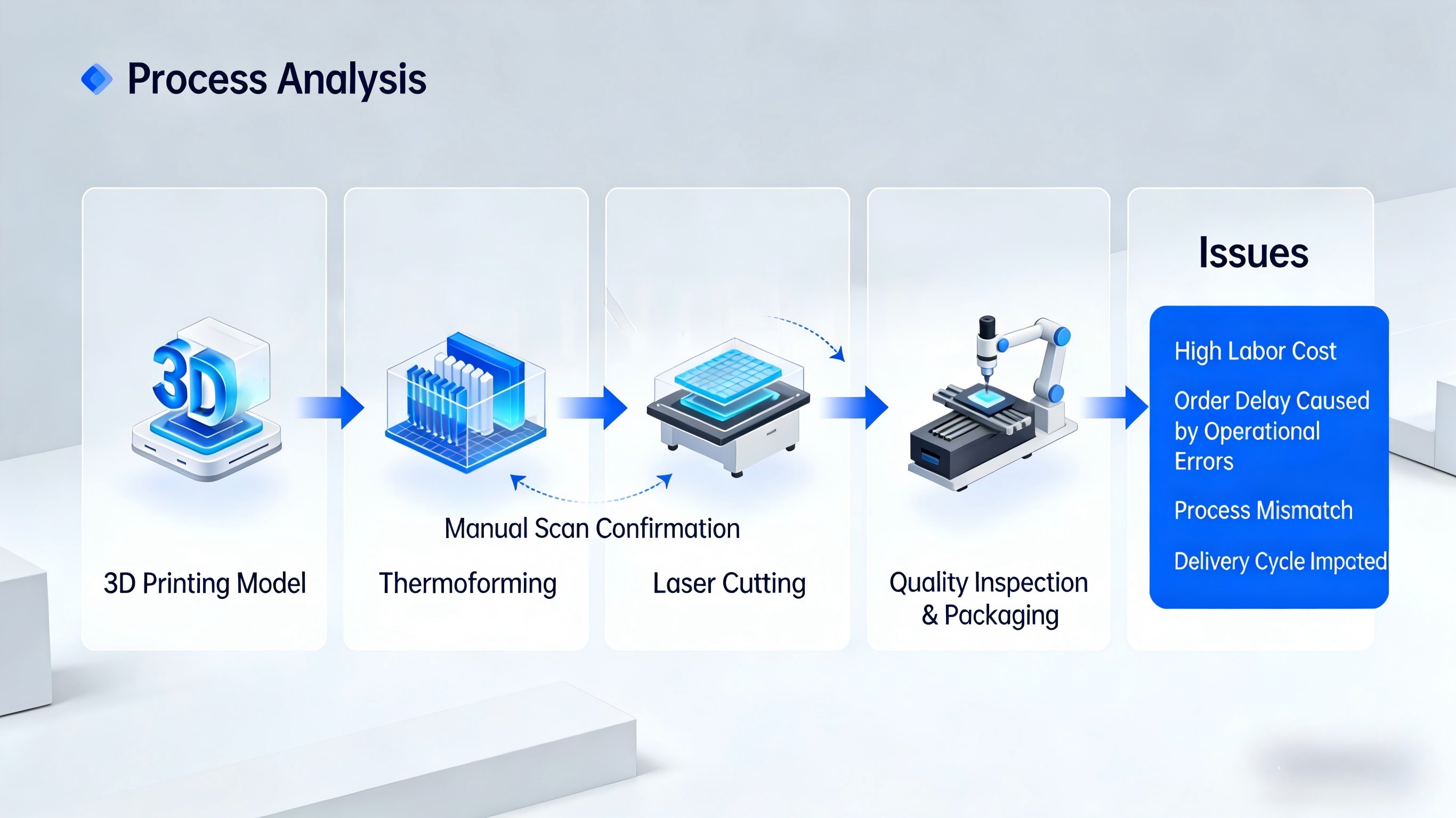

Low efficiency of process collaboration: From 3D printing modeling and thermoforming to laser cutting, quality inspection and packaging, the connection of multiple processes relies on manual barcode scanning confirmation. This not only occupies a lot of labor costs, but also easily leads to order flow delays and process mismatches due to human operation errors, directly affecting the product delivery cycle and reducing customer satisfaction.
Fragmented quality data: Key quality inspection data such as brace thickness, fit and material performance are stored separately from equipment parameter data of each production process, failing to form a complete data chain. When product quality problems occur, it is difficult to quickly locate the root cause—whether it is design deviation, abnormal equipment parameters or unqualified material batches, it takes a lot of time to investigate.
Insufficient medical compliance: As a Class II medical device, the production process of invisible braces must strictly follow the requirements of medical data privacy protection and full-process traceability. The traditional management model cannot realize the encrypted association and compliant retention of patient data, production data and quality inspection data, and cannot meet industry regulatory standards.
Superisys provides an industrial RFID hardware solution designed for clear aligner production, enabling full lifecycle tracking and automated data collection.
Superisys medical-grade micro RFID tag RF-HZMTY200-2K is selected, which is optimized and designed according to the characteristics of the invisible braces production process. It has the characteristics of waterproof, acid and alkali resistance, high temperature resistance (adaptable to the high-temperature environment of the thermoforming process) and strong anti-interference. It can be accurately attached to 3D printed models or brace carriers for installation without affecting the normal operation of subsequent processes such as forming and quality inspection. The tag has a built-in encrypted unique identification code, which can be associated with desensitized patient oral data, design scheme parameters and material batch information. It supports dynamic writing and encrypted storage of full-process data, which not only effectively protects patient privacy and security, but also fully meets the compliance requirements of the medical industry.

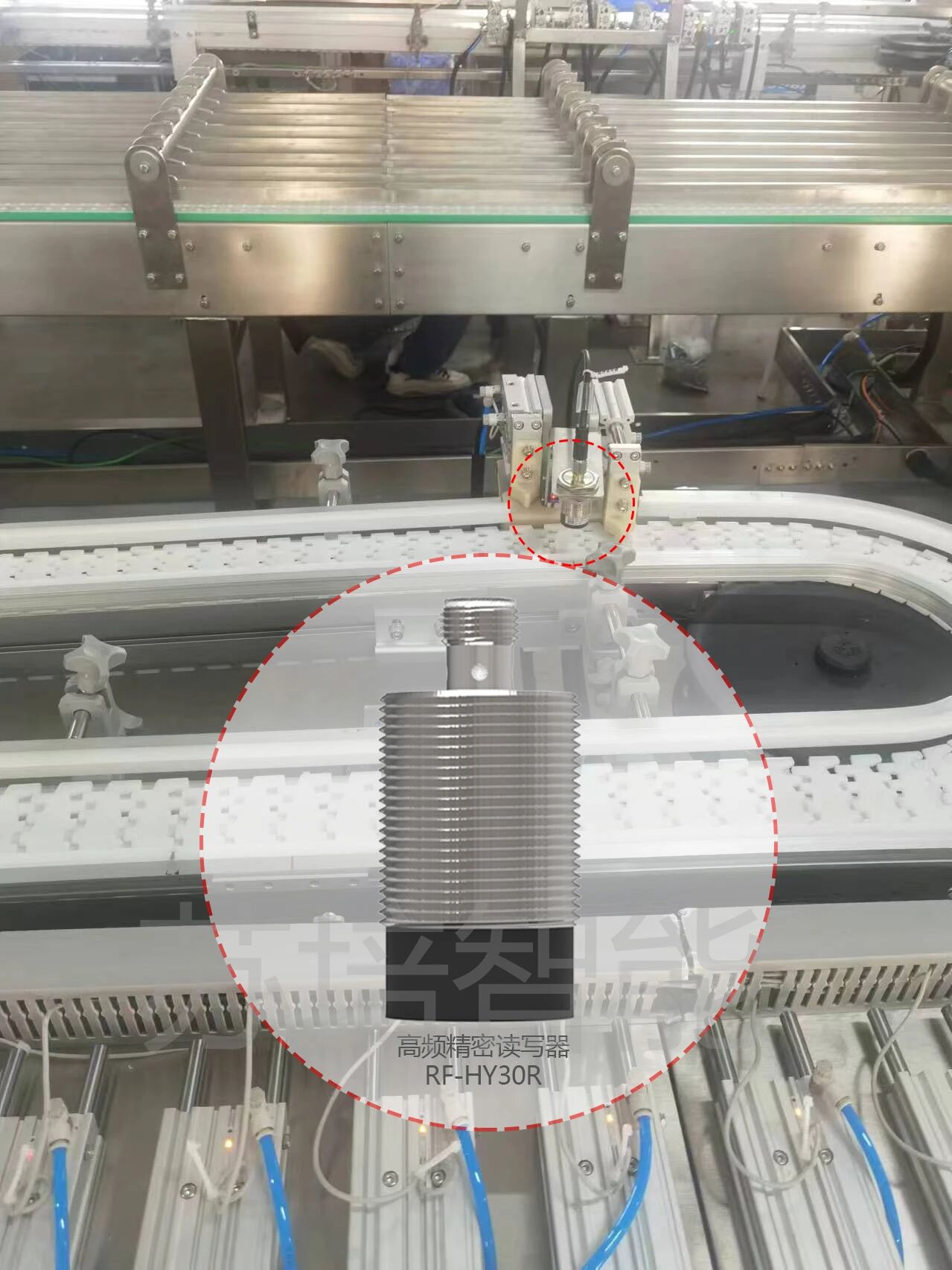

Superisys high-frequency RFID reader RF-HY30R and gateway module IACM-P4 are fully deployed at key stations in the whole production process of invisible braces (3D printing workshop, thermoforming station, laser cutting station, quality inspection station, packaging station), which are deeply integrated with the enterprise's existing automated production lines to achieve seamless connection. When the brace carrier passes through each station, the RFID reader RF-HY30R automatically identifies the tag information, and completes the real-time collection and upload of process execution status, equipment parameters (such as printing accuracy, thermoforming temperature) and quality inspection results without manual intervention, and synchronously updates the tag data, truly realizing "production is recording" with no manual intervention and eliminating human errors.
For the scenario of parallel production of multi-batch personalized orders, relying on the accurate identification ability of RFID hardware, it can assist the enterprise's own system to automatically match production parameters with design schemes. If there are abnormal situations such as order mismatch and process skipping, it can link the production line to trigger an alarm and suspend operations, force the standardization of the production process, avoid production errors of personalized orders from the source, and ensure product quality.
The full-process data collected by Superisys RFID hardware can be seamlessly connected to the enterprise's own medical-grade MES system and design system, helping the enterprise build a visualized production management dashboard. Managers can real-time monitor the production progress of each order, equipment operation status and quality inspection pass rate, accurately grasp the production nodes of each brace, and realize transparent management of the production process. Through the unique identification code of the tag, it can assist the enterprise to achieve full-chain traceability: forward traceability to patient oral scanning data and design scheme versions; backward traceability to production process parameters, quality inspection reports, material batches and delivery logistics information, fully meeting the production compliance requirements of Class II medical devices and easily coping with industry regulatory inspections.
At the same time, the encryption feature of the RFID tag can cooperate with the enterprise's own system to realize hierarchical encryption management of patient data and production data. Only authorized personnel can view the relevant associated information, which not only fully guarantees data privacy and security, but also can quickly call up full-process data for problem investigation when after-sales problems occur, effectively reducing the risk of medical disputes and improving brand credibility.
Relying on the full-process accurate data collected by RFID hardware, it can assist the enterprise's own system to automatically generate multi-dimensional data reports such as production efficiency reports, quality inspection pass rate analysis and equipment utilization statistics, helping the enterprise accurately locate production bottlenecks—such as high rework rate in a certain process and insufficient adaptability of a certain batch of materials. It provides scientific and accurate data support for production process optimization and material selection upgrading, continuously improves the production accuracy and stability of invisible braces, and promotes the iterative upgrading of product quality.

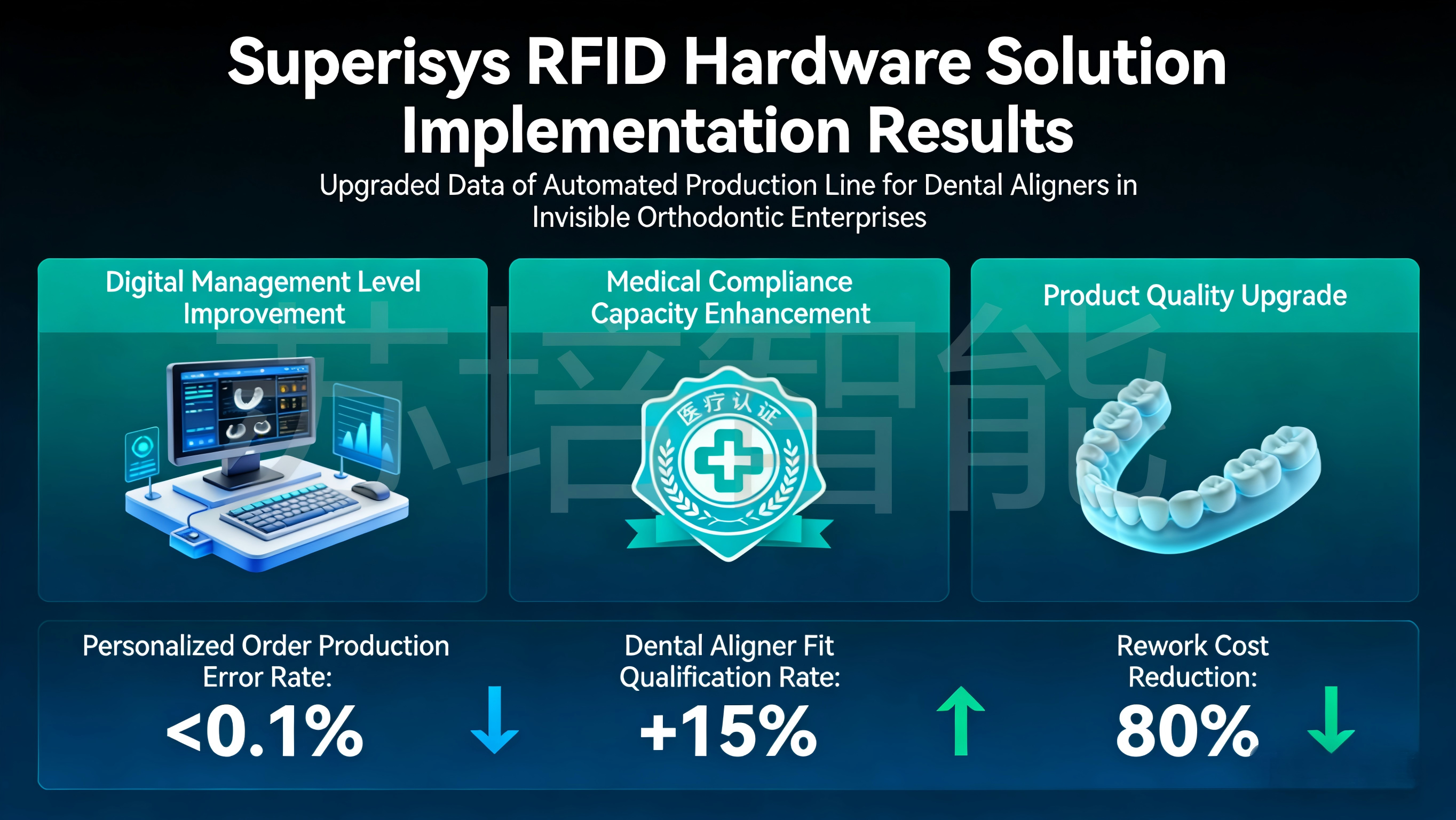

After the successful implementation of Superisys RFID hardware solution, the digital management level and medical compliance capacity of the automated invisible braces production line of the leading invisible orthodontic enterprise have been significantly improved. The core application effects are as follows:
Comprehensive compliance with medical requirements: It helps enterprises realize the encrypted association and full-process traceability of patient data, production data and quality inspection data, fully meeting the production compliance requirements of Class II medical devices. The traceability time of problematic products is shortened by 90%, which greatly improves the efficiency of compliance management.
Significant improvement in production efficiency: It completely replaces manual barcode scanning and data entry links. The production cycle of a single brace is shortened by 25%, labor costs are saved by 35%, and the on-time delivery rate of orders is increased from 88% to 99.5%, effectively improving customer satisfaction and repurchase rate.
Significant upgrading of product quality: The production error rate of personalized orders is reduced to less than 0.1%, the pass rate of brace fit is increased by 15%, and the rework cost caused by production problems is reduced by 80%, further strengthening the core competitiveness of the enterprise brand.
Integrated data management: It provides solid hardware support for the integrated management of the enterprise's full-process data, helps the enterprise build a closed-loop innovation system of "design-production-feedback", provides accurate data basis for production process optimization and product iteration upgrading, and promotes the high-quality development of the enterprise.
Superisys has always focused on the R&D and innovation of core industrial RFID hardware technology. With professional solutions and high-performance hardware products, it continues to empower the digital transformation of the invisible orthodontic industry, helping enterprises solve production management pain points, achieve dual improvement of large-scale production and personalized quality, and promote the high-quality development of the oral medical intelligent manufacturing industry.
Clear aligner production represents a new paradigm of mass customization in medical manufacturing.
RFID technology plays a critical role in enabling:
Smart factory automation
Full lifecycle traceability
Data-driven decision making
As the industry evolves, RFID will become a key infrastructure for digital healthcare manufacturing.
