As smart manufacturing continues to evolve, the drone industry is facing increasing demands for precision, automation, and full traceability across production processes. From core component assembly to final product testing, every step requires reliable identification and real-time data capture to ensure consistent quality and efficient operations.

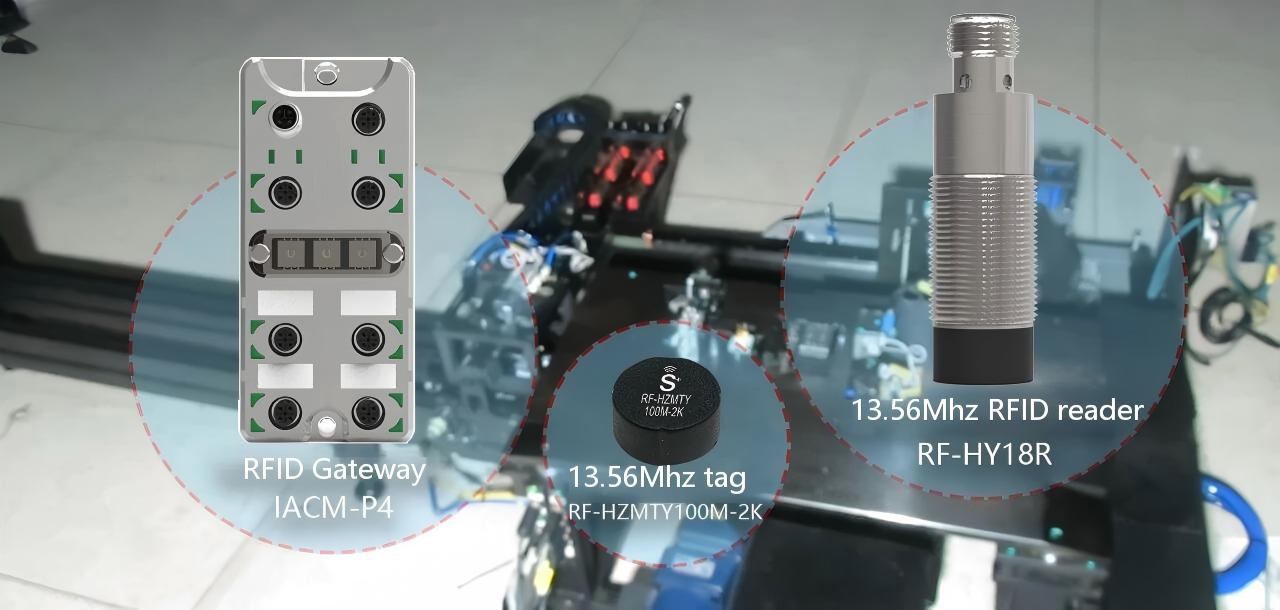

To address these challenges, Superisys delivers an end-to-end industrial RFID solution combining:

• HF RFID Reader: RF-HY18R-R4

• RFID Gateway: IACM-P4-PN (ProfiNet)

• Anti-metal RFID Tag: RF-HZMTY100M-2K

This integrated solution has been successfully deployed in a leading drone manufacturer’s production line, enabling full-process digital management and significantly improving operational efficiency.

 Challenges in Drone Production Lines

Drone manufacturing environments are highly demanding, characterized by:

High precision and compact assembly processes

1. Small-sized components with limited installation space

2.  High proportion of metal parts causing signal interference

3. Complex workflows requiring large-scale data storage and traceability

4. Harsh industrial environments with continuous operation requirements

Traditional identification technologies often struggle to meet these requirements, especially in metal-intensive and high-density production environments.

Superisys provides a fully integrated solution combining RFID tags, readers, and industrial networking, designed specifically for drone production scenarios.

Tailored RFID Solution for Precision Manufacturing

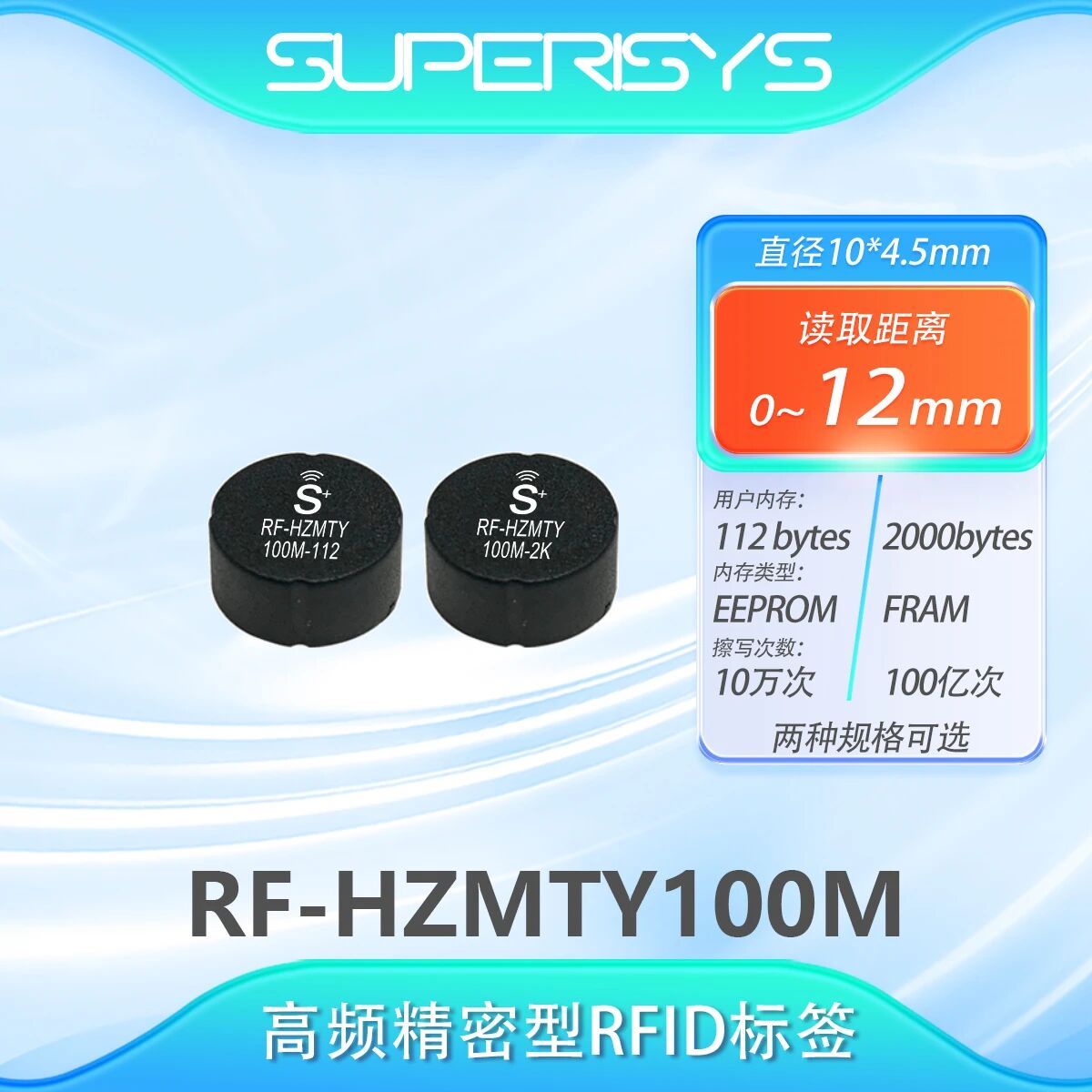

1. Anti-Metal RFID Tag: Reliable Data Carrier

The RF-HZMTY100M-2K tag serves as a digital identity for each component, ensuring data travels with the part throughout its lifecycle.

Key features:

• *Large memory capacity (2000 Bytes FRAM)

  Stores complete lifecycle data, including part ID, batch, supplier, process parameters, and inspection records

• Optimized for metal environments

  Supports flush mounting or direct attachment on metal surfaces without signal degradation

• Industrial-grade durability

  a. IP68 protection

  b. Operating temperature: -40°C to +70°C

  c.  Up to 10 billion write cycles

  d. Data retention up to 10 years

* Compact design (Φ10 × 4.5 mm)

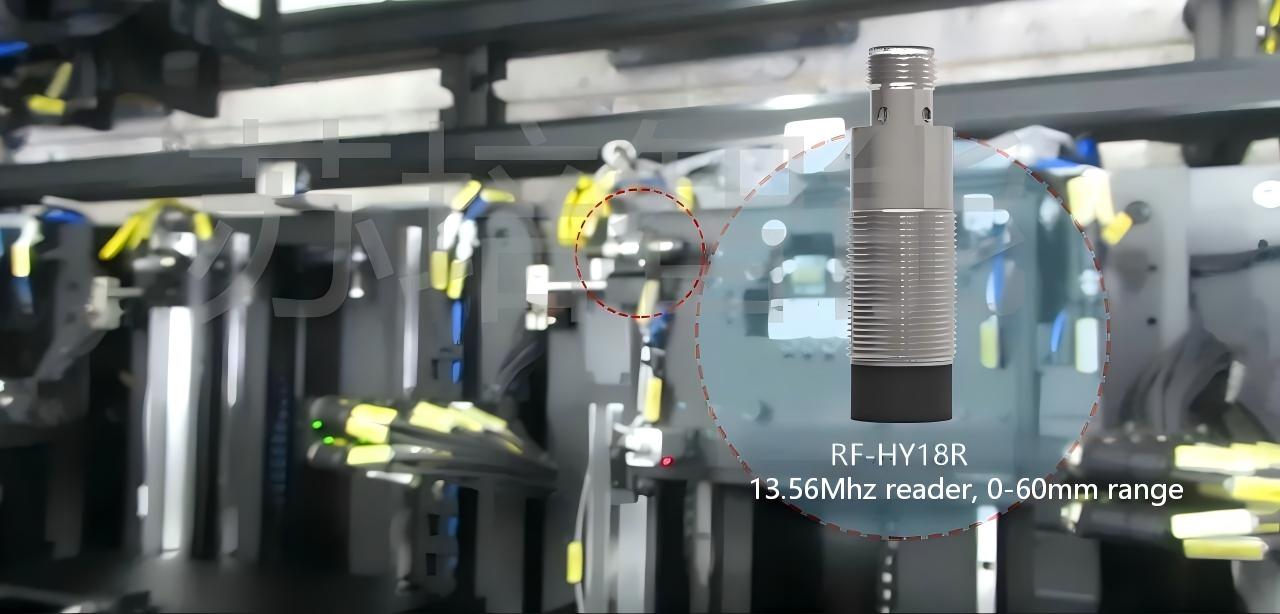

2. Compact RFID Reader: Accurate and Stable Data Capture

 The RF-HY18R-R4 reader is designed for precision manufacturing stations, enabling real-time data acquisition at every step.

Advantages:

a.Compact M18 form factor for easy integration into tight spaces

b. Reading range: 0–60 mm, ensuring precise detection

c. IP67 protection against dust and moisture

d.  Wide temperature range: -25°C to +70°C

e. Low power consumption (<0.05A @ 24VDC)

f. Vibration-resistant, suitable for conveyor and automated systems.

 This ensures stable performance in continuous 24/7 production environments.

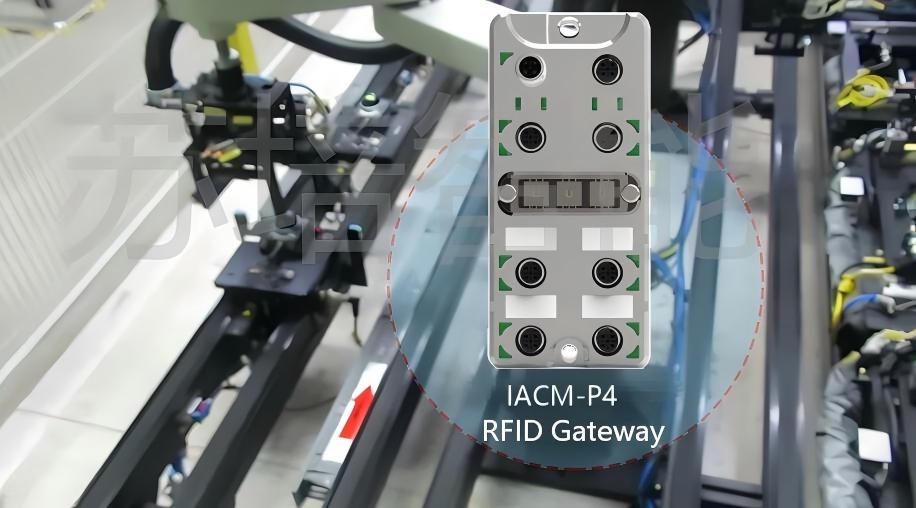

3. Industrial Gateway: Seamless Data Integration

The IACM-P4-PN gateway acts as the data hub of the system, connecting field devices to higher-level control systems.

Core capabilities:

a. ProfiNet communication for seamless PLC and MES integration

b. 4 independent RS485 channels, supporting multiple readers simultaneously

c.Flexible topology (star / tree) for scalable deployment

d. Long communication distance (up to 100 meters)

e. Cascade support for large production lines

Industrial reliability:

a. IP67 zinc alloy housing

b. Surge protection (3000W), overvoltage and reverse polarity protection

*c.Designed for harsh industrial environments.

After implementation, the drone production line achieved:

a. 80% improvement in identification efficiency

b. 100% elimination of manual data entry

c. 100% traceability accuracy

d. Stable identification of metal components

The solution significantly enhanced automation levels, reduced human error, and ensured consistent product quality.

Driving the Future of Smart Drone Manufacturing

By combining robust hardware, anti-metal technology, and industrial communication, Superisys enables manufacturers to achieve:

• Full lifecycle traceability

•  Real-time production visibility

•  Improved operational efficiency

• Scalable smart factory upgrades

As drone manufacturing continues to demand higher precision and reliability, RFID technology is becoming a key enabler of next-generation intelligent production systems.
