The welding wire industry faces challenges such as diverse materials, complex specifications, and harsh processing environments. Traditional manual control methods lead to material mix-ups, poor traceability, and inventory issues. These inefficiencies affect welding quality and production efficiency, complicating compliance with standards like ISO 9001. Superisys brand offers an industrial RFID solution for full lifecycle control of welding wire processing. This solution improves efficiency, quality control, and traceability, helping manufacturers achieve digital transformation and meet industry standards.
Due to the large variety of welding wire types and specifications, manual methods of tracking and managing materials are prone to errors. Material mix-ups lead to quality loss, costly rework, and wastage.
In traditional settings, data collection for welding wire processing is done manually, which results in inaccuracies and inefficiencies. This manual approach is time-consuming and prone to human error.
Without real-time inventory management, it is difficult to keep track of stock levels, which often results in inventory backlogs or shortages. Additionally, lack of traceability makes it hard to pinpoint the root cause of any quality issues.
Improper storage conditions, such as exposure to moisture or poor organization, can lead to the degradation of welding wire quality, increasing waste and reducing operational efficiency.
Superisys provides a comprehensive RFID solution designed to address these issues, offering automated data collection, traceability, and real-time monitoring throughout the entire welding wire processing lifecycle.

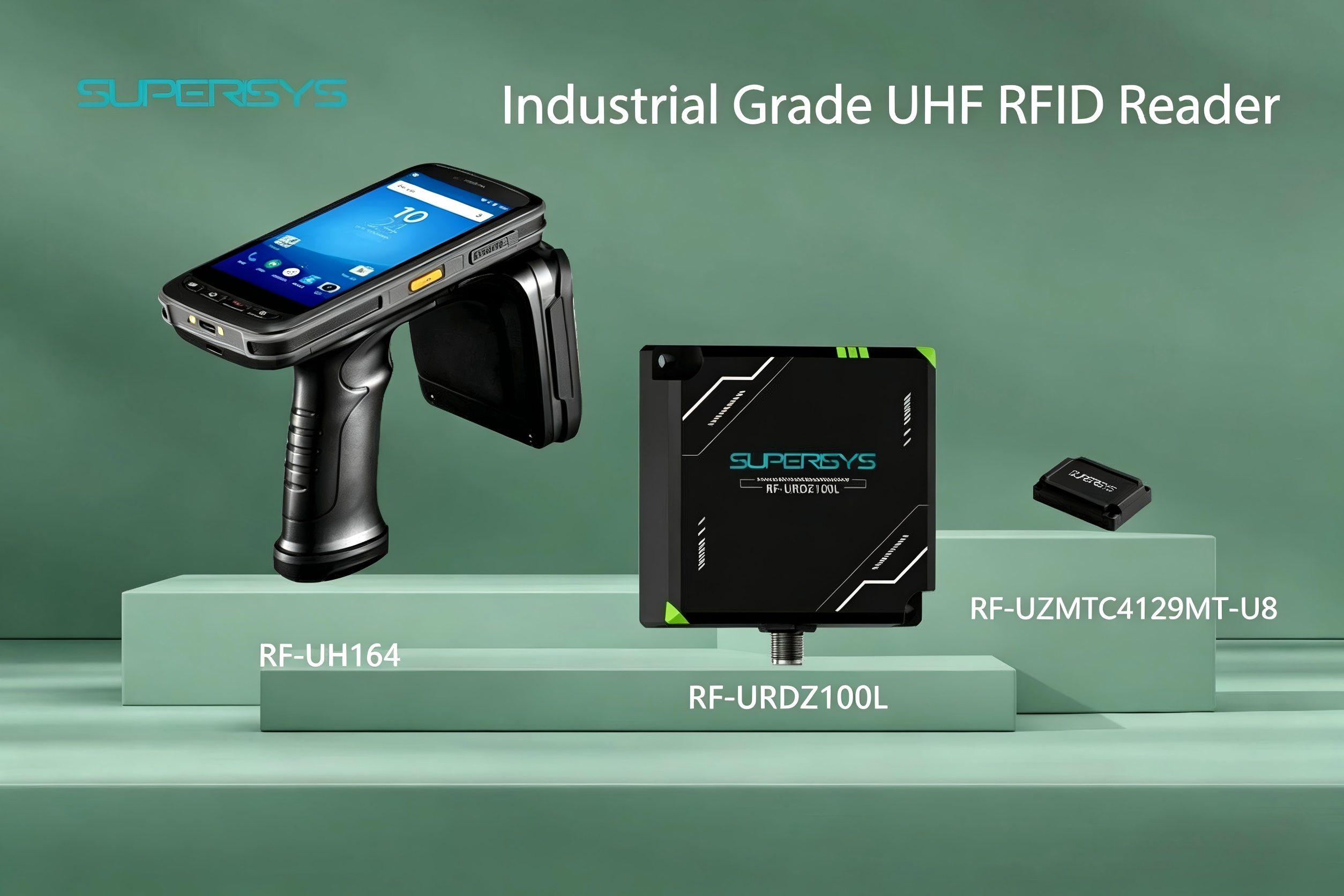

RFID Tags

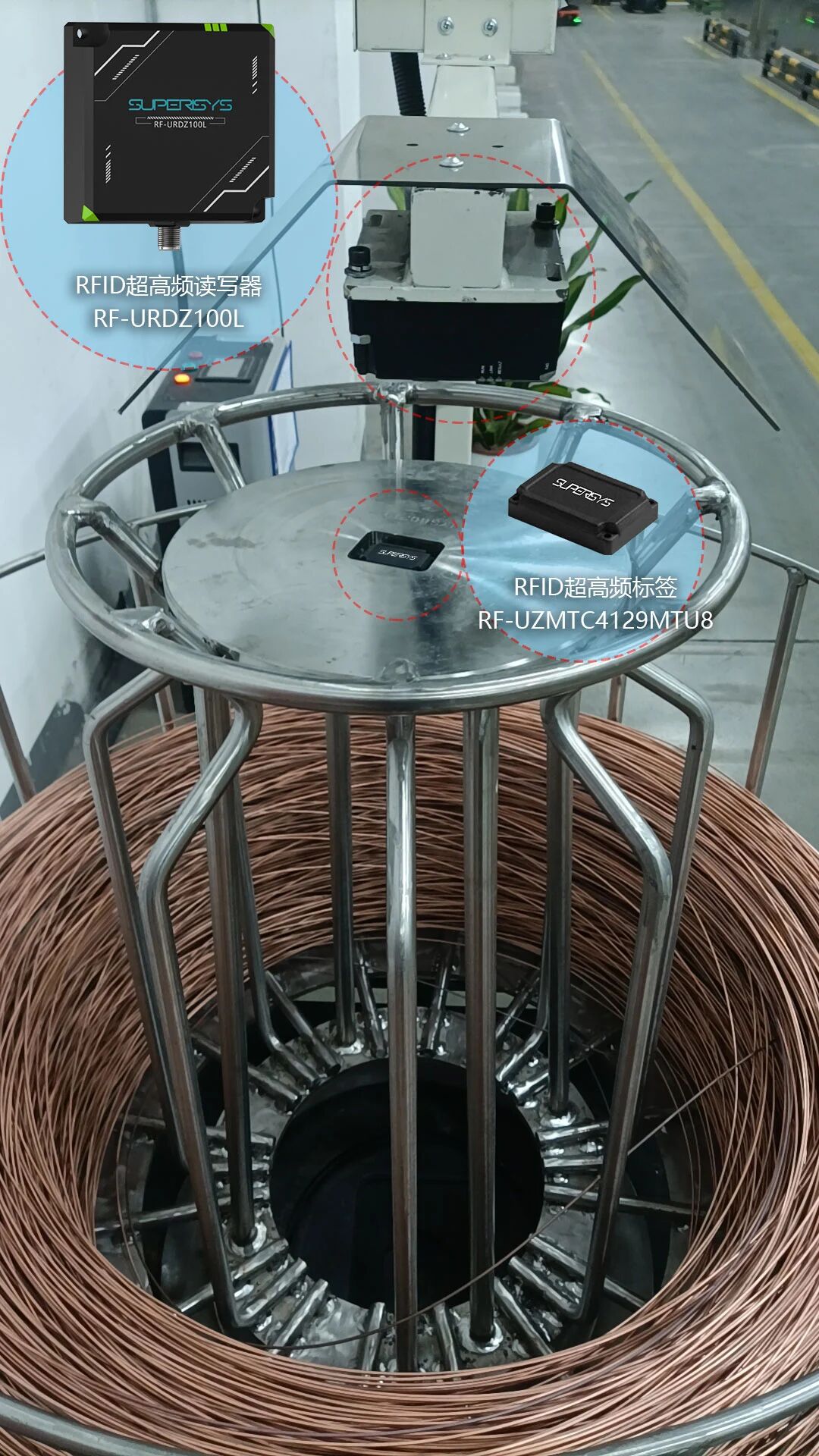

RF-UZMTC4129MT-U8: An anti-metal RFID tag, ideal for welding wire coils, designed to endure high temperatures, oil, dust, and harsh environments typically found in welding workshops. These tags provide a unique identifier for each welding wire coil.
Fixed RFID Readers

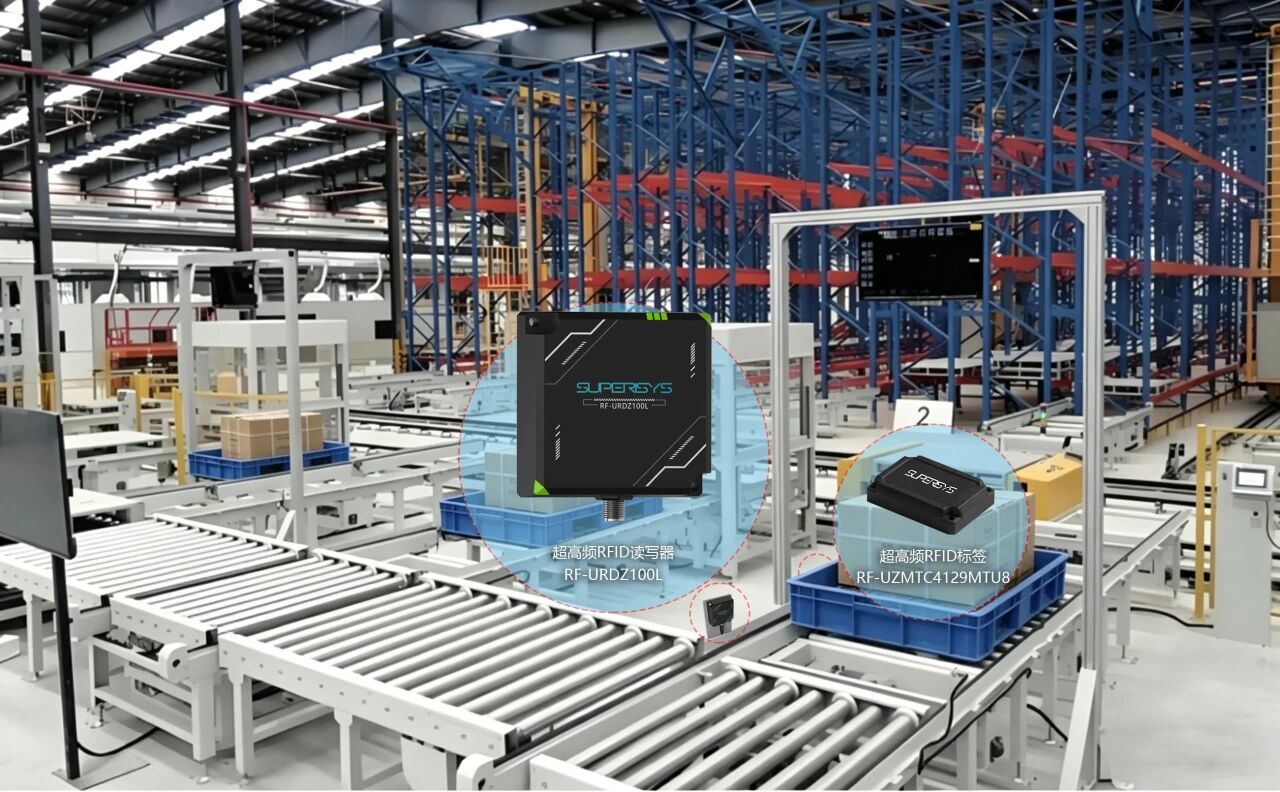

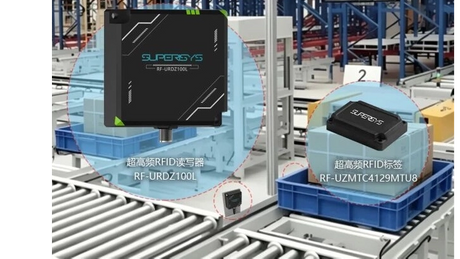

RF-URDZ100L: A UHF RFID industrial-grade reader installed at each processing station and storage shelf. It ensures the automatic reading and data uploading of welding wire information. With a compact design (100x100x41.5mm), IP65 protection rating, and wide working temperature range (-25°C to 60°C), it can handle harsh workshop environments with ease.
Mobile RFID Collection Device
RF-UH164: A high-performance UHF handheld terminal used for inventory stocktaking, welding wire issuance, and on-site inspections. The device is equipped with an 8000mAh battery and supports glove or wet-hand operation, making it ideal for mobile warehouse operations.
1. Raw Material Inventory and Tagging (Traceability Start)
Upon the arrival of welding wire raw materials (steel coils), the RFID system is used to create an initial record and track all related data, including material type, specification, supplier, batch number, and more. The RF-UH164 handheld terminal reads the RFID tag to capture and store this information. This ensures that each coil is uniquely identified and can be traced throughout its lifecycle.
2.Processing Control (Automation and Error Prevention)

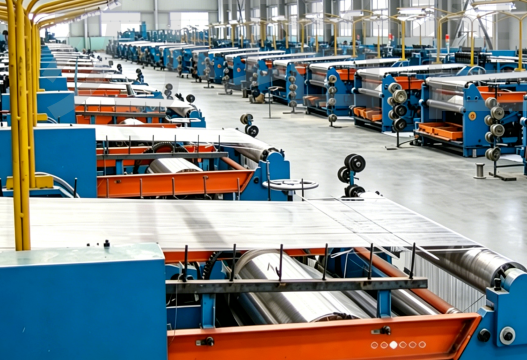

In the wire drawing, annealing, and winding processes, RF-URDZ100L readers are installed at each station, automatically reading the RFID tag to capture processing data and prevent errors. For example, during the wire drawing stage, the system automatically validates the raw material’s specifications against the work order. If the material doesn't match the required parameters, the machine will be locked and an alert will be sent to prevent errors. Data such as drawing speed, annealing temperature, and winding length is collected in real-time and uploaded to the MES system, eliminating the need for manual recording and reducing errors.
3.Product Testing and Warehouse Management (Intelligent Control)
After welding wire products are tested for quality (e.g., appearance, diameter accuracy, tensile strength), the RF-UH164 terminal is used to input the results into the system, automatically synchronizing with the MES. Non-compliant products are flagged, ensuring only high-quality products enter the warehouse. The RF-URDZ100L reader at the storage area automatically reads the RFID tags to allocate storage locations and manage stock levels in real-time.
4.Inventory Control and Smart Stocktaking

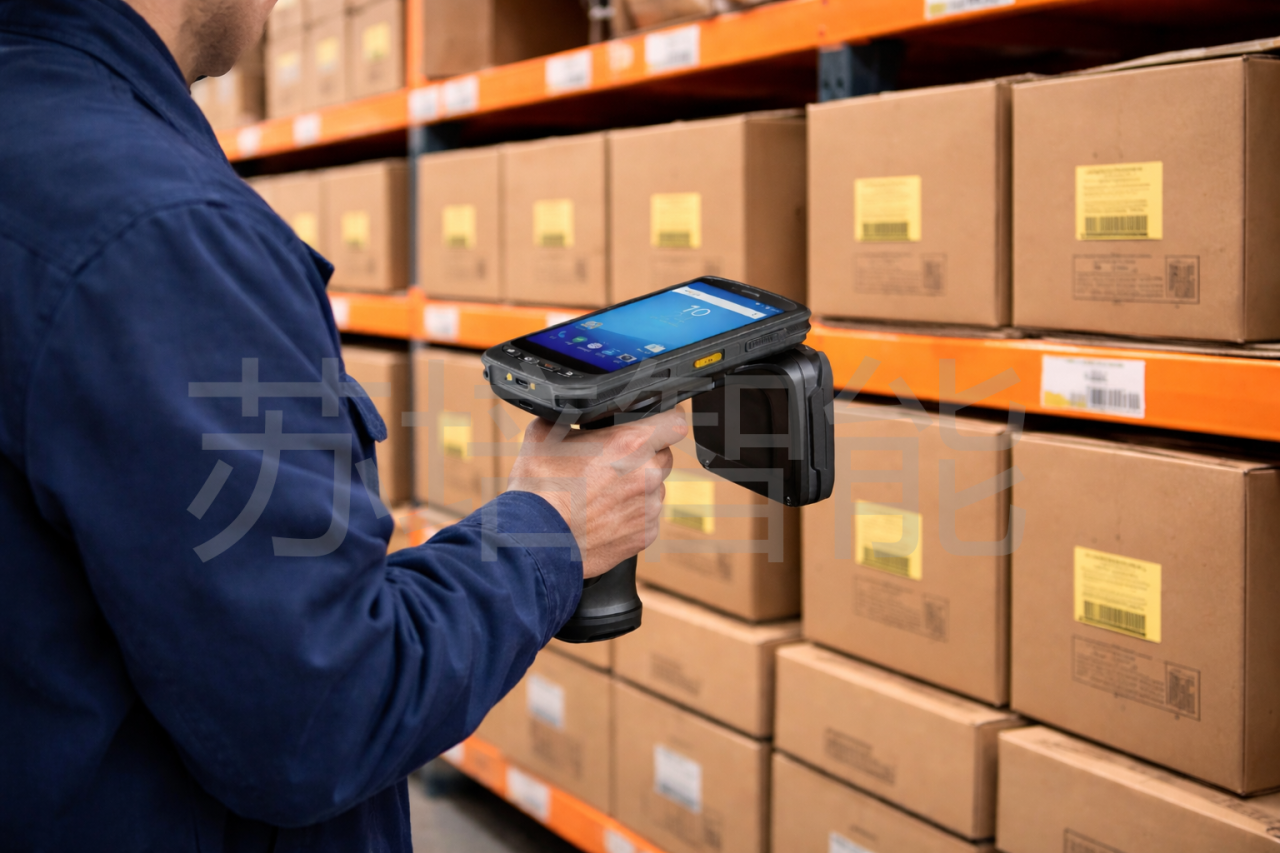

Using the RF-UH164 handheld terminal, inventory can be checked in bulk, with the system performing automatic comparison and verification against recorded stock levels. The system can generate stocktaking reports, significantly increasing accuracy and efficiency while reducing inventory discrepancies and manual labor. The stocktaking process becomes 90% more efficient compared to manual methods.
5.Welding Wire Issuance and Traceability (Closed-Loop Control)

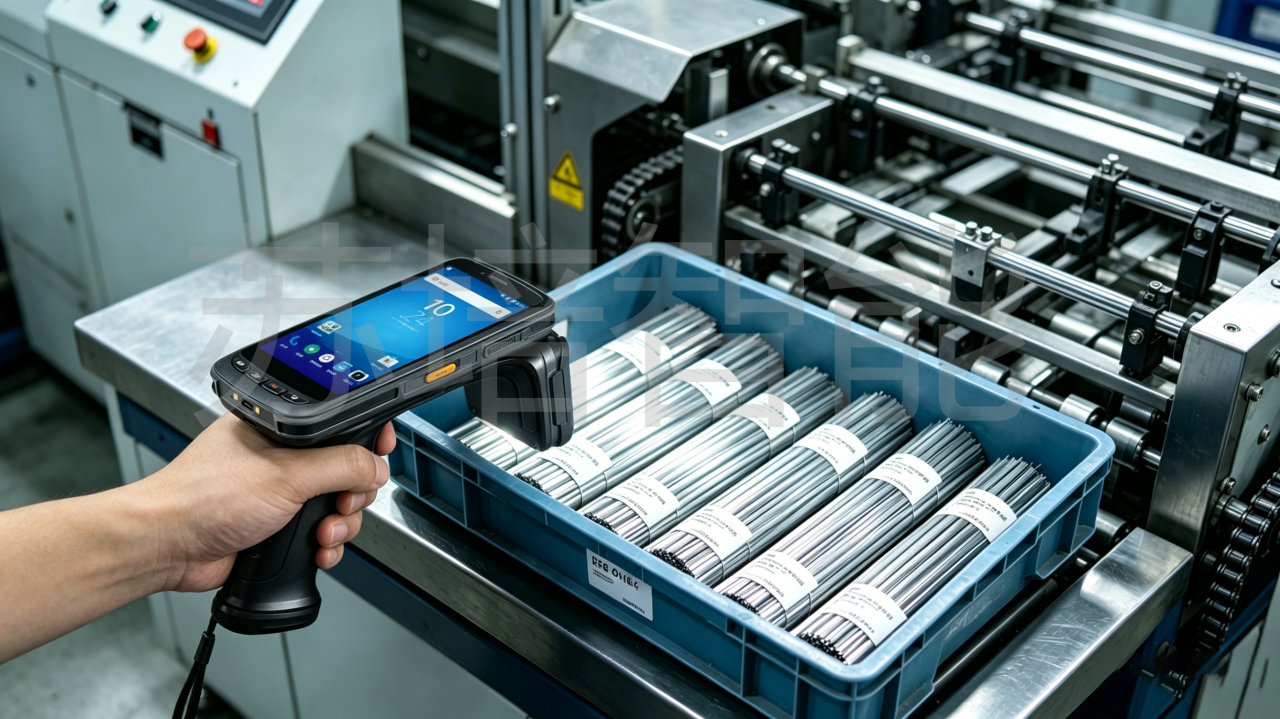

When welding wire is issued for use, the RF-UH164 handheld terminal reads the RFID tag and verifies its specifications and batch number against the welding work order. Once validated, the system records the issuance, updating the inventory status. At the welding stations, the RF-URDZ100L readers collect real-time data on welding machine parameters, including machine number, welding time, and wire consumption, ensuring traceability from the welding wire coil to the final product.
6.Quality Traceability and Tag Recycling
In the event of a quality issue with the welded product (e.g., cracks or porosity), the RFID tag allows for quick traceability of the entire production process, from raw materials and processing parameters to usage and machine details. This enables rapid root cause analysis, improving quality control and reducing the likelihood of disputes. Moreover, once the welding wire is used, the RFID tags can be recycled for future use, reducing material costs.
Supai Smart’s RFID products are customizable and compatible with various welding wire materials and sizes. The solution is highly adaptable to different manufacturing environments, allowing easy integration into existing systems without significant modifications.
Automated data collection and validation eliminate human error, leading to improved data accuracy. The system provides real-time monitoring, which helps optimize production processes, increase efficiency, and reduce operational costs.
From raw material arrival to final welding use, the RFID system ensures complete traceability of each welding wire coil. This feature enhances quality control and helps manufacturers meet ISO 9001 standards and customer audit requirements.
The Superisys RFID solution does not require significant changes to existing equipment or storage systems. It is a cost-effective solution that allows for scalable implementation across different stages of the manufacturing process.
The full traceability of welding wire throughout its lifecycle enables quick identification and resolution of quality issues, reducing risks and improving customer satisfaction. The system’s reporting features also support compliance with industry standards and customer requirements.
Superisys RFID solution revolutionizes welding wire processing by offering an integrated, automated, and highly efficient digital control system. From raw material inventory to final welding, the system enhances traceability, improves quality control, reduces errors, and drives operational efficiency. With its adaptability, scalability, and cost-effectiveness, the solution empowers welding manufacturers to meet industry standards and achieve digital transformation in their operations.
