Real-Time Traceability and Siemens PLC Integration in Metal Manufacturing Environments

As automotive manufacturing continues moving toward Industry 4.0 and smart factory automation, production lines require more reliable identification technologies capable of operating in high-speed, metal-intensive industrial environments.

Traditional barcode systems often struggle with contamination, manual dependency, and unstable identification performance. In automotive seat production lines, where metal carrier structures, vibration, oil contamination, and strict takt times are common, industrial RFID has become a more reliable solution for automatic identification and process traceability.

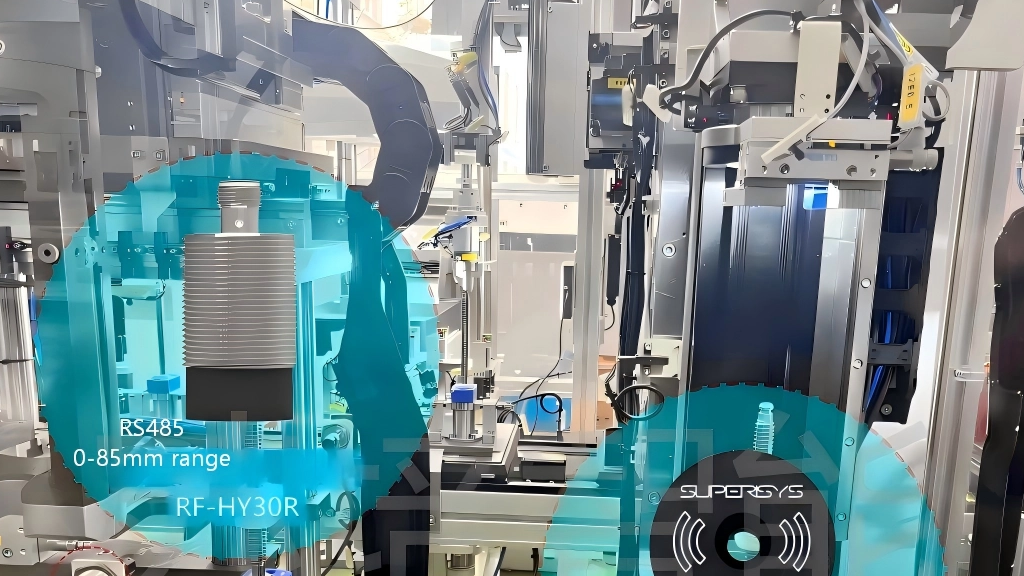

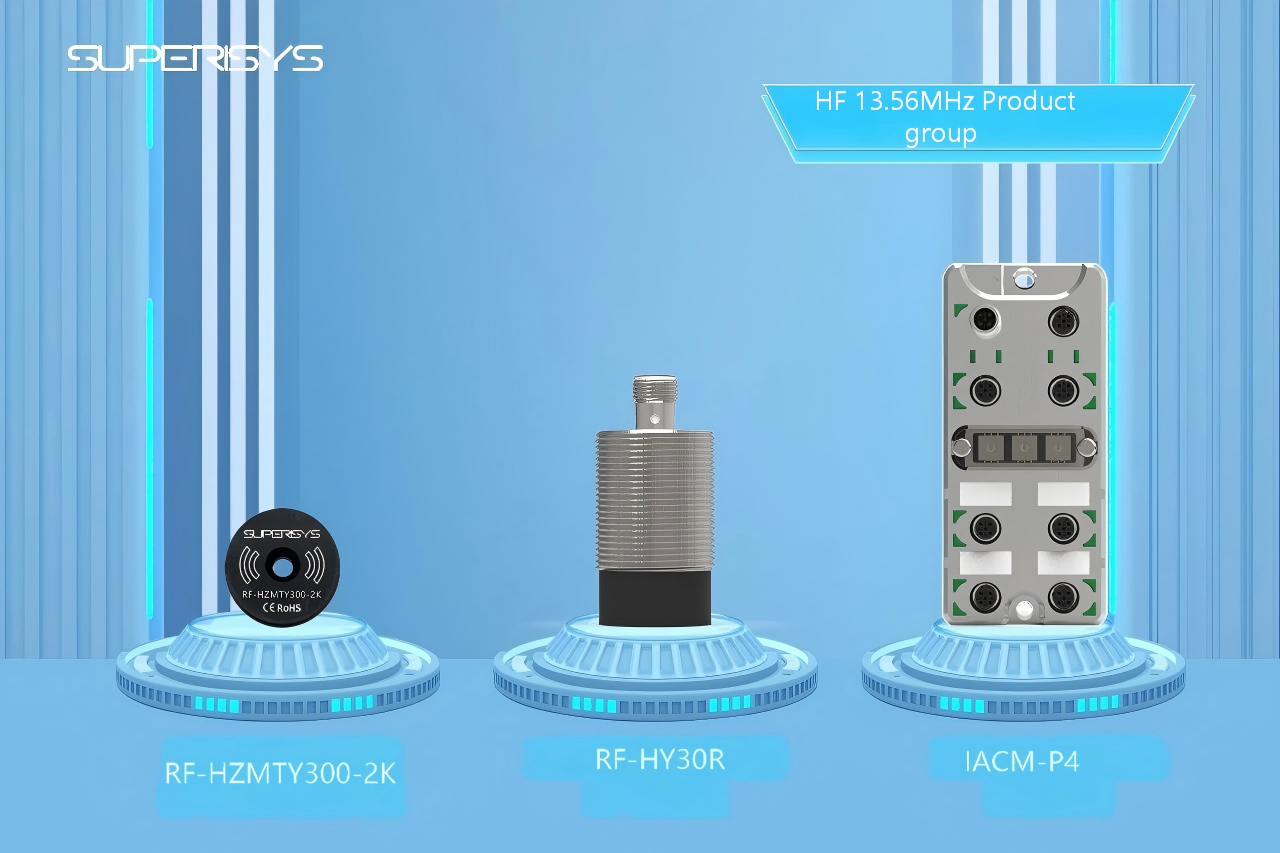

Superisys provides industrial RFID hardware solutions designed specifically for factory automation and harsh manufacturing environments. By combining the RF-HY30R-R4 RFID Reader, IACM-P4-PN ProfiNet Gateway, and RF-HZMTY300-2K RFID Tag, multiple automotive seat component production lines have achieved stable workstation identification, Siemens PLC integration, MES connectivity, and full-process traceability.

Technical Challenges in Automotive Seat Manufacturing

Automotive seat support structures are primarily metallic, creating significant challenges for conventional identification technologies.

Typical production issues include:

• Electromagnetic interference caused by metal workpieces

• Missed reads and false triggering under high-speed movement

• Manual barcode scanning reducing takt efficiency

• Complex integration requirements with Siemens S7-1500 PLC systems

• Dust, oil, and vibration affecting hardware reliability

• Requirement for real-time manufacturing traceability

In automated production lines operating 24/7, identification stability directly impacts production continuity and quality control.

Production Line Workflow

1. Pallet Initialization

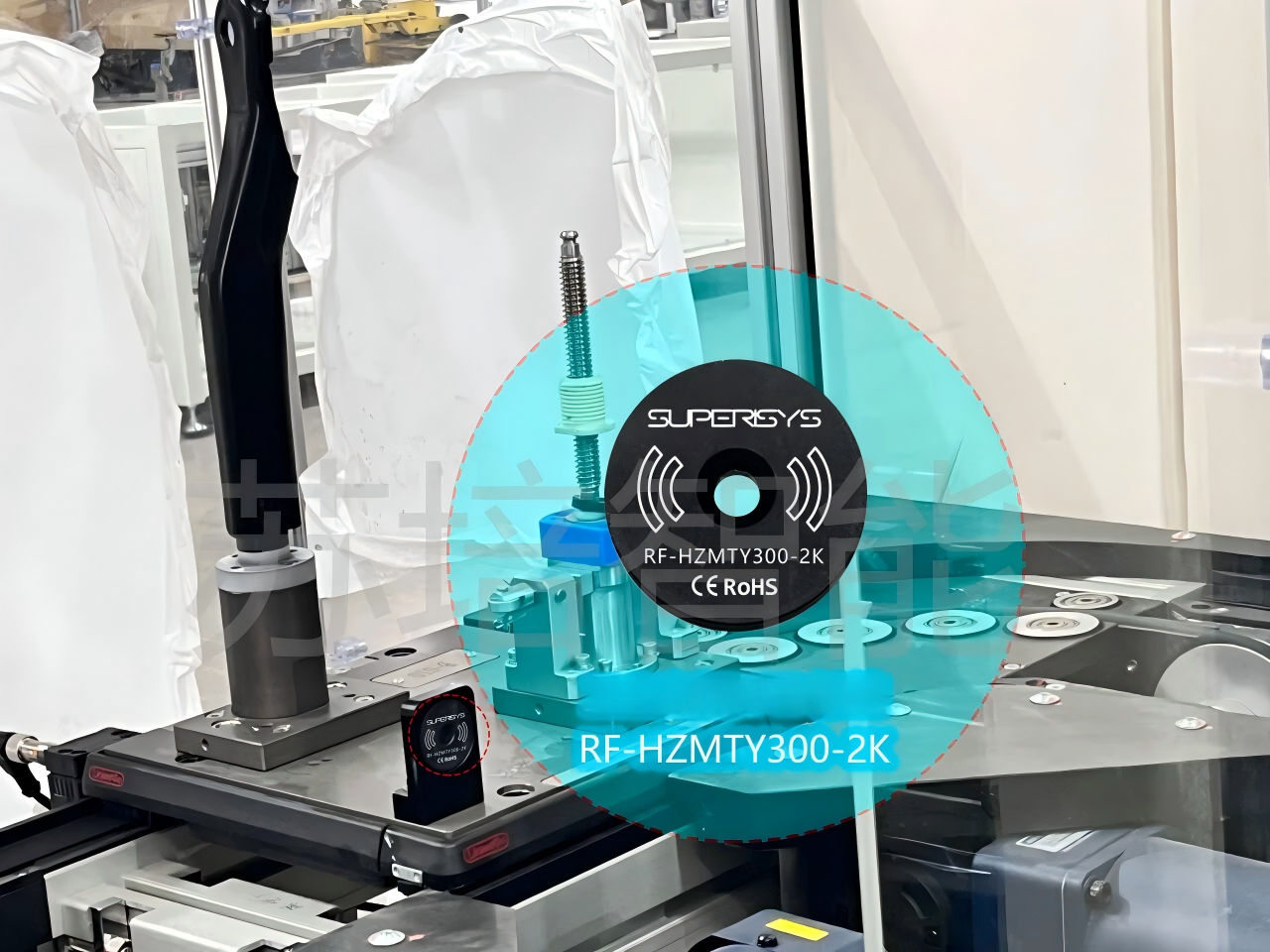

At the beginning of the production process, the RFID system writes a unique RFID ID into each pallet tag.

The ID is associated with:

• Product model

• Production batch

• Manufacturing order

• Process route information

The Siemens PLC validates and stores all initialization data before production begins.

2. Automatic Workstation Identification

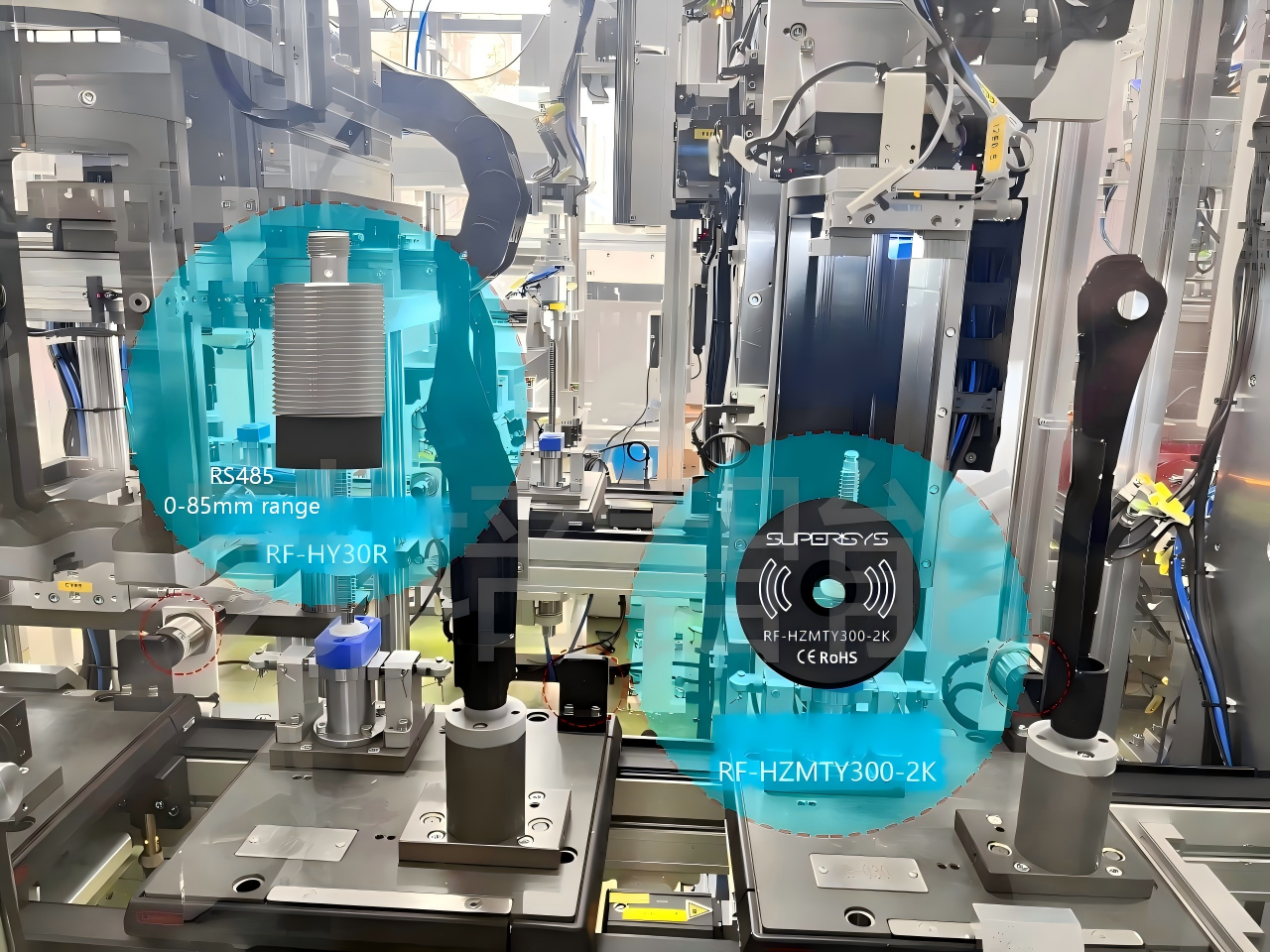

As pallets move through different manufacturing stations, the RFID reader automatically detects the pallet ID.

Typical stations include:

• Servo press-fitting

• Torque tightening

• Functional inspection

• Assembly verification

The RFID data is transmitted to the Siemens PLC in real time via ProfiNet communication.

This eliminates manual barcode scanning and improves production consistency.

3. Real-Time Process Data Binding

Manufacturing equipment such as:

• FESTO servo presses

• Electric torque tools

• Online inspection systems

upload production parameters directly to the MES system.

All process data is linked to the RFID ID, including:

• Press-fit force curves

• Torque values

• Inspection results

• Production timestamps

• Operator records

This creates a complete digital manufacturing history for every product.

Core Advantages of the Solution

Stable Identification in Metal Environments

The reader and tag are optimized together to achieve highly stable communication under metal interference conditions.

Fast Siemens PLC Integration

Standard ProfiNet communication simplifies integration into Siemens automation systems without complicated secondary development.

Online Inspection and Quality Control
