Superisys HF RFID Enables Full-Process Data Traceability in Automotive Compressor Production

Overview

In modern automotive component manufacturing, high-precision assembly and full-process quality traceability are essential. Traditional methods relying on paper records or barcode scanning often struggle to provide reliable, real-time data, especially in high-speed production environments.

Superisys HF RFID hardware has been adopted in the production lines of automotive air-conditioning compressors (HZ0.5 and CZ0.6 series), supporting automatic data collection and quality traceability throughout the entire manufacturing process—from incoming materials to final testing and packaging.

Production Line Challenges

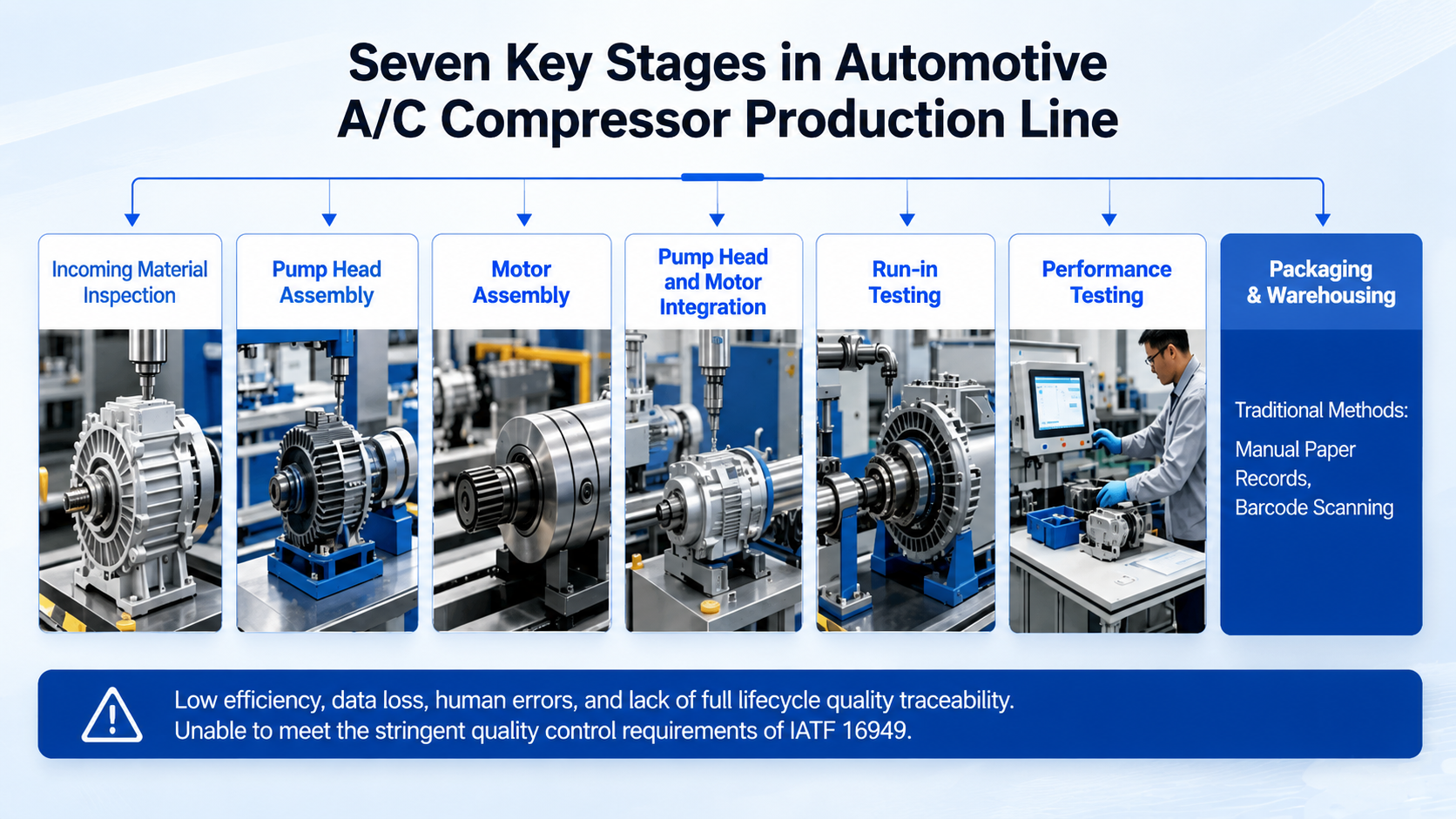

Automotive compressor manufacturing involves multiple critical processes:

• Incoming material inspection

• Pump head assembly

• Motor assembly

• Rotor balancing and assembly

• Run-in testing

• Performance verification

• Packaging and warehousing

Each process generates key data points, such as:

• Press-fit forces and displacements

• Bearing clearance and height measurements

• Rotor balance parameters

• Motor electrical characteristics

• Assembly torque values

• Run-in and performance test curves

Previously, data collection relied on manual entry or barcode scanning, which could lead to errors, missing information, and limited traceability—posing a challenge for compliance with automotive quality standards such as IATF 16949.

Superisys HF RFID Hardware Deployment

For these high-speed, high-precision, and metal-dense production environments, the following Superisys hardware was deployed:

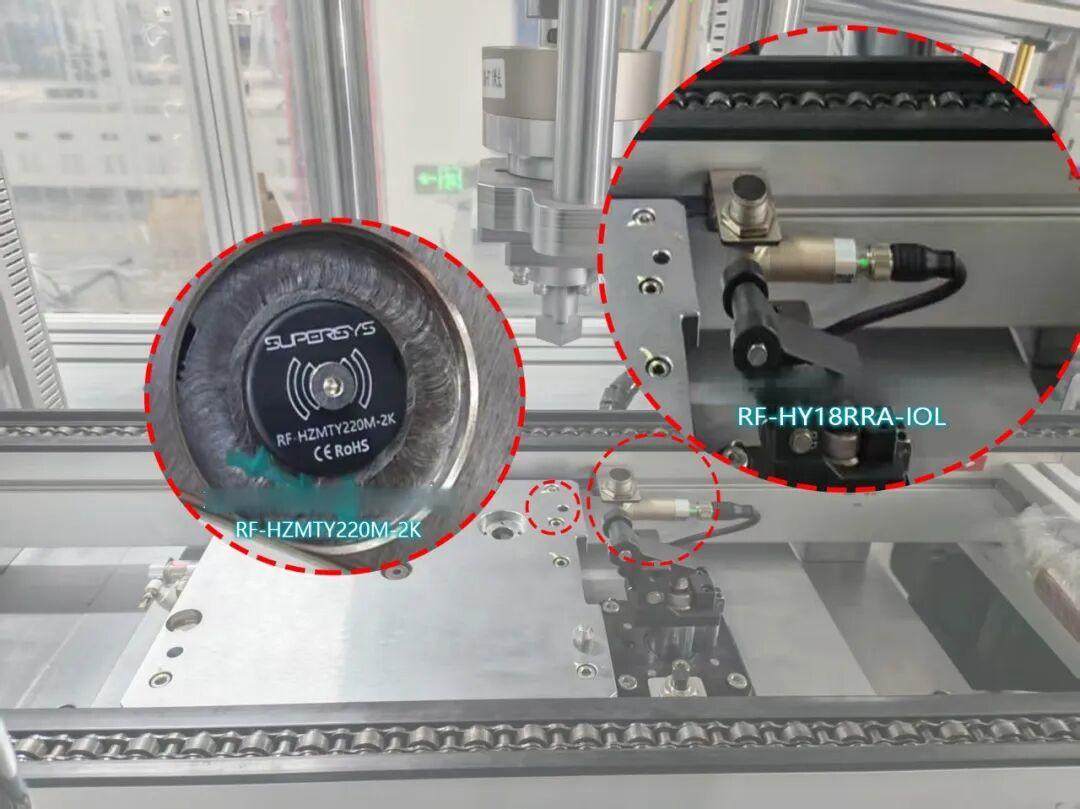

• RF-HY18R-IOL HF RFID Reader

• RF-HY18RRA-IOL HF RFID Reader

• RF-HZMTY220M High-Temperature RFID Carrier

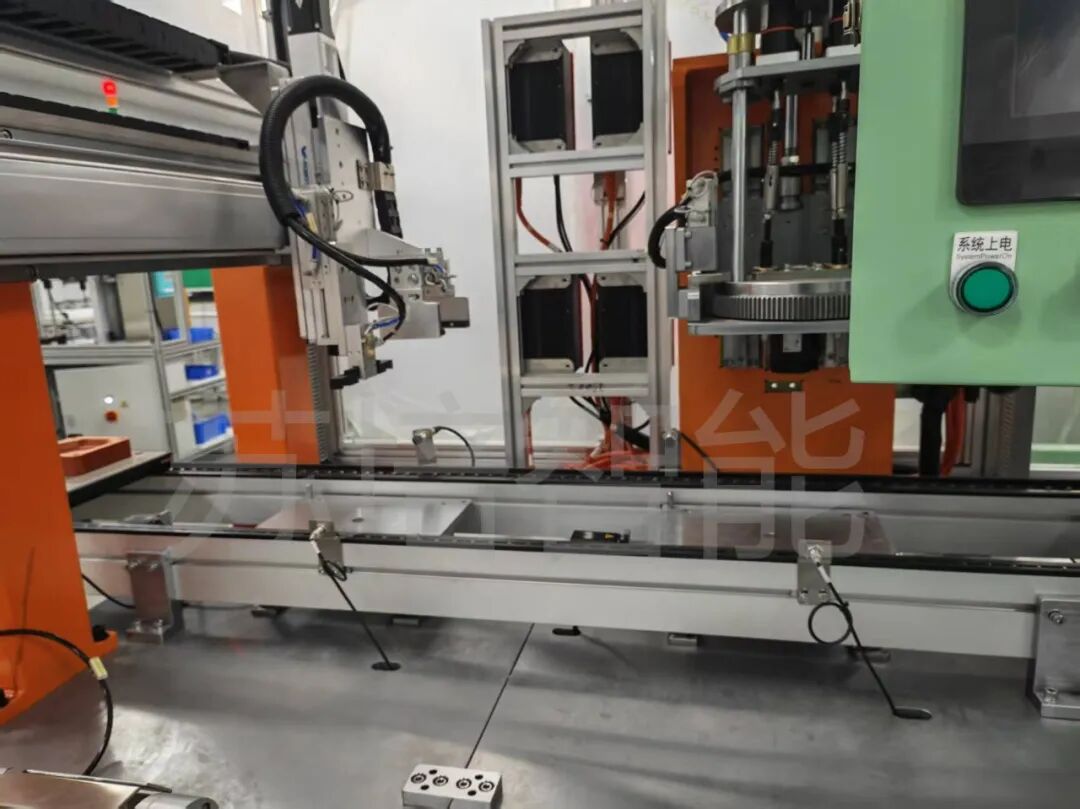

The RFID carrier is mounted directly on assembly fixtures, allowing it to travel with each compressor unit across all stations. Critical process and measurement data are read and written in real-time without human intervention.

Key Capabilities

Automatic Process Data Capture

• Bearing press-fit forces, displacement, and height measurements

• Rotor balance and assembly parameters

• Motor performance test results

• Assembly torque and run-in test data

• Operator and equipment IDs with timestamp

This ensures accurate and complete process data for each unit, reducing manual errors and enabling digital records.

Full-Process Traceability

• Each compressor carries a unique digital identity stored on the RFID carrier.

• Process data from all stations can be traced instantly, including equipment conditions, measurement data, and test results.

• Any quality deviations can be traced to specific stations or batches, enabling precise corrective actions.

Reliability in Harsh Environments

• Industrial-grade carriers resist mechanical impacts, oil, metal dust, and high temperatures.

• Readers support IO-Link and Modbus RTU protocols for fast and reliable read/write cycles without affecting production speed.

• Optimized RF design ensures stable communication in metal-dense and high-EMI assembly lines.

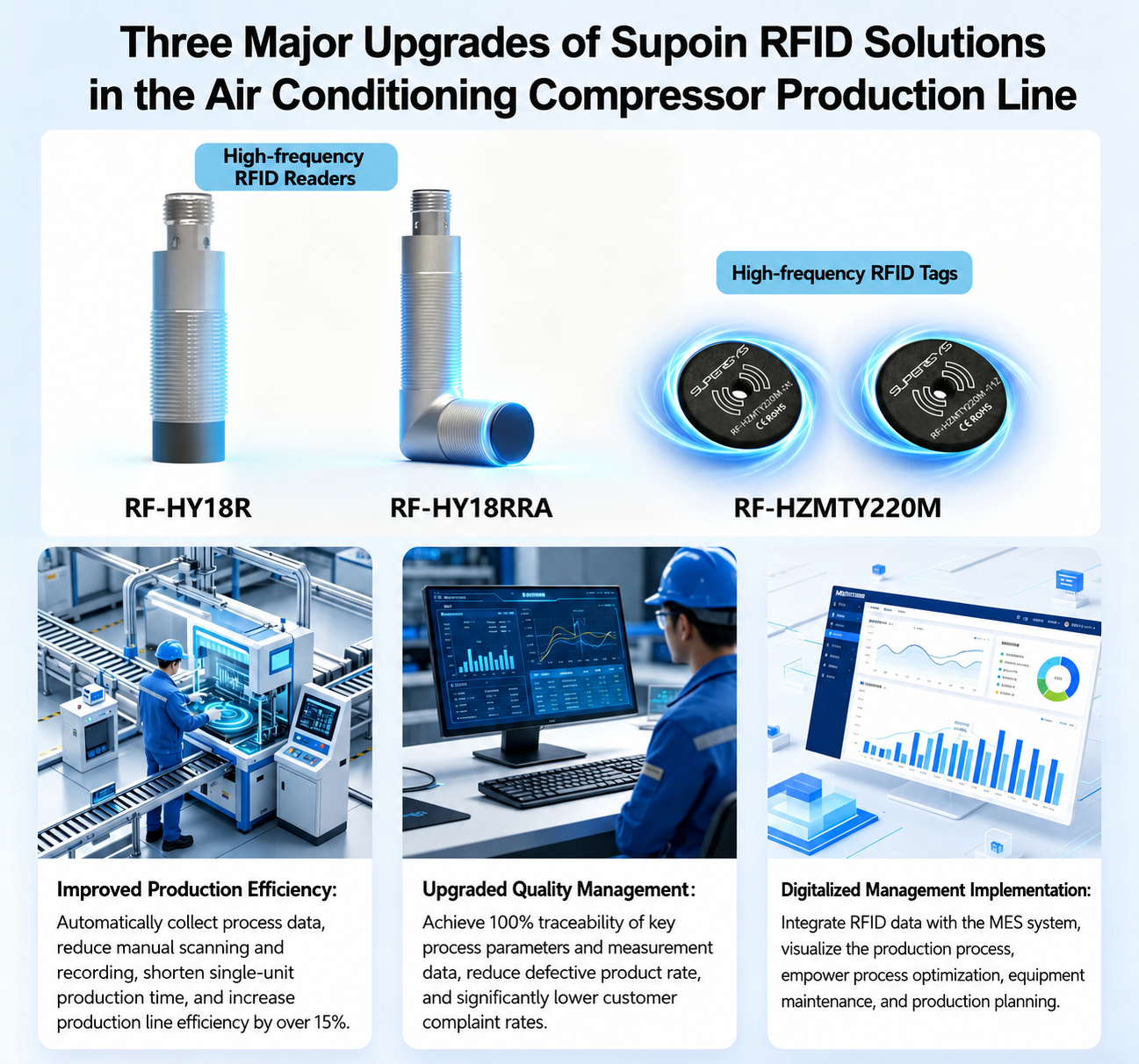

Impact on Production

• Efficiency Improvement: Automated data capture reduces manual work and scanning, shortening production cycle times and increasing throughput.

• Quality Assurance: Critical process parameters and measurements are 100% traceable, reducing defect rates and supporting compliance with automotive quality standards.

• Digital Manufacturing Foundation: RFID data can be integrated into MES systems, providing real-time insights for process optimization, predictive maintenance, and capacity planning.

Conclusion

Superisys HF RFID hardware demonstrates high reliability and precision in automotive component manufacturing, supporting:

• Full-process data capture and traceability

• Stable operation in high-speed, metal-intensive production lines

• Seamless integration with industrial communication protocols

As a result, manufacturers can enhance production efficiency, strengthen quality control, and build a solid foundation for digital and intelligent manufacturing.
