Superisys Empowers Controllers for Special Electric Battery Vehicles with RFID Technology, Forging a Robust Digital Defense for the Entire Production Lifecycle

 In the sector of special electric battery vehicles, the controller acts as the core power control unit—the "brain" of the equipment. It’s production precision and quality stability directly underpin the operational safety and work efficiency of the vehicles. Whether for factory patrolling, warehousing and logistics, or outdoor operations, special electric battery vehicles impose stringent requirements on the anti-interference performance, durability and traceability of their controllers.

The traditional management model for controller production, which relies on manual recording and barcode scanning, is plagued by persistent pain points such as missed process inspections, distorted parameters and poor traceability. These issues are even more likely to create quality risks in scenarios involving precision assembly across multiple processes and harsh production environments.

Superisys has developed a targeted industrial RFID full-process solution, successfully helping a leading manufacturer of controllers for special electric battery vehicles address its production management challenges and achieve closed-loop digital control spanning from material warehousing to finished product delivery.

1. Prominent Industry Pain Points Render Traditional Models Inadequate

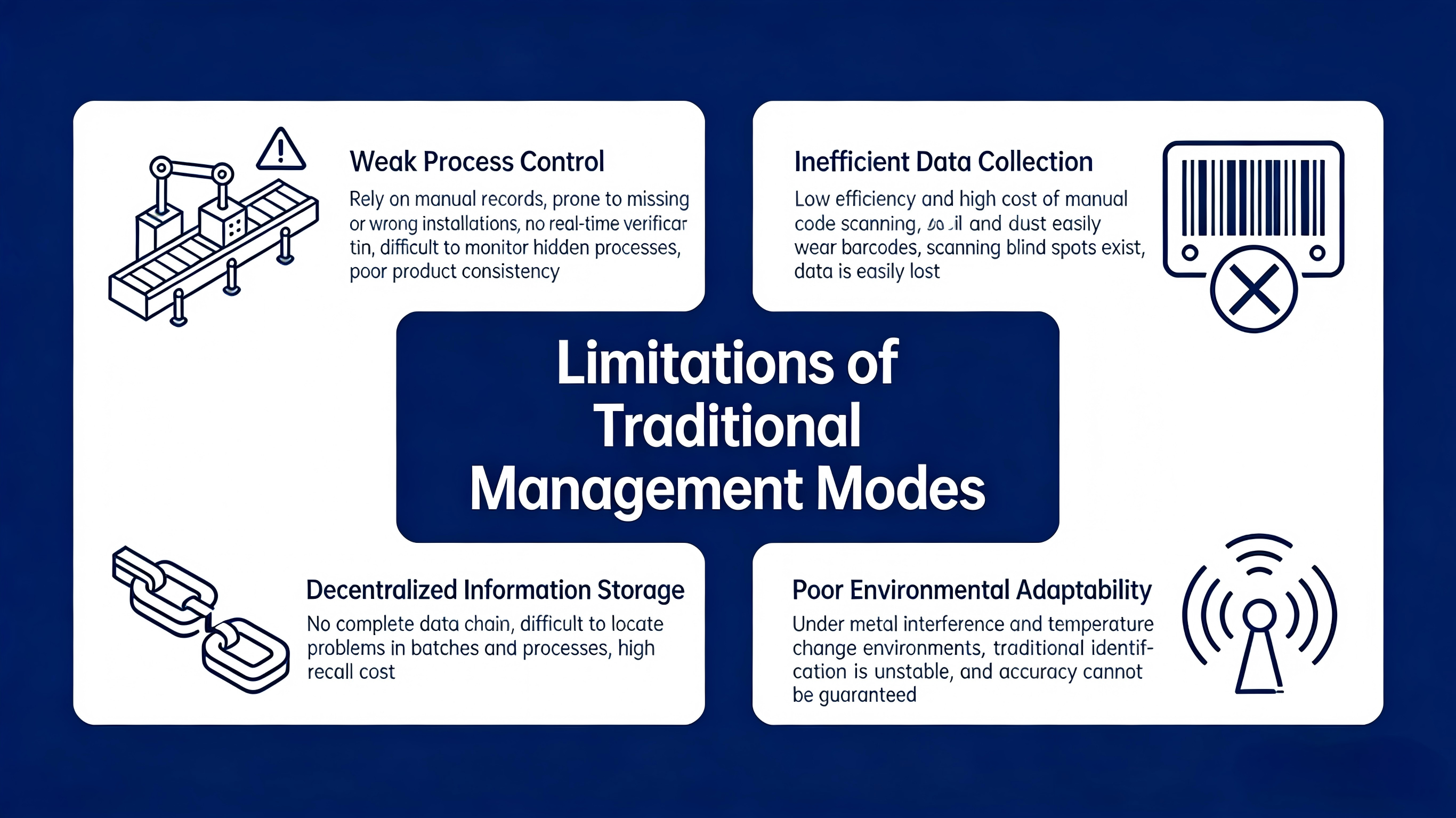

Controllers for special electric battery vehicles feature a sophisticated structure, with production encompassing a series of precision processes including hardware design, chip welding, parameter calibration, hardware-in-the-loop simulation and finished product debugging. Compounded by the need to adapt to harsh production conditions such as metal-rich environments and temperature fluctuations, the limitations of traditional management models have become increasingly pronounced:

· Weak process control: Over-reliance on manual recording of process execution leads to frequent missing or incorrect assembly. Real-time verification of process compliance is not feasible, and parameter deviations in hidden processes are hard to detect, compromising product consistency.

· Inefficient data collection: Barcode scanning for data recording requires manual operation on a one-by-one basis, which not only incurs high labor costs but also leaves scanning blind spots. Barcodes are prone to wear and failure in oily and dusty environments, resulting in critical data loss.

· Incomplete traceability system: Information including core components, assembly parameters and test results of controllers is stored in a decentralized manner, failing to form a coherent data chain. In the event of quality issues, it is difficult to quickly locate the affected batches and faulty processes, leading to exorbitant product recall costs.

· Poor environmental adaptability: Metal interference and temperature variations are common during the production of special controllers, which easily disrupt traditional identification technologies and undermine their recognition accuracy.

2. Solution Implementation: RFID Enables End-to-End Digital Production

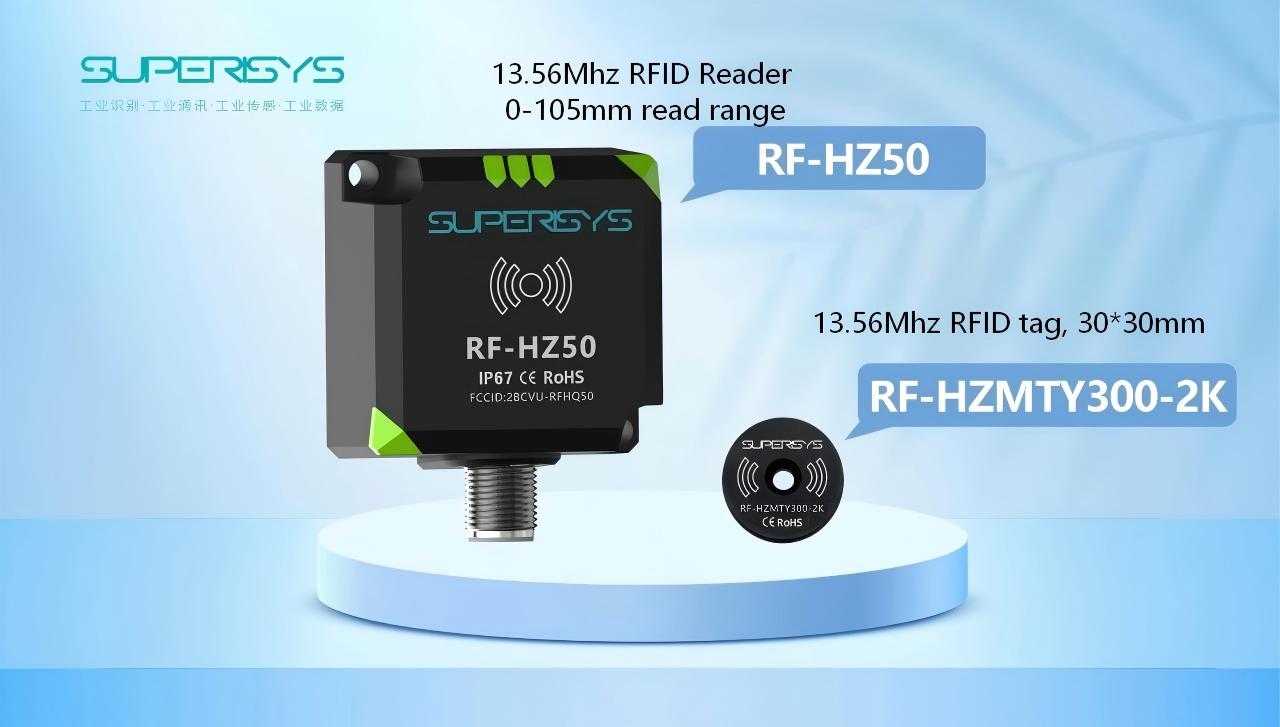

To tackle the above pain points, Superisys leveraged its profound technical expertise in industrial RFID to customize an integrated hardware solution for the manufacturer—combining the high-frequency RFID tag RF-HZMTY300-2K with the high-frequency reader-writer RF-HZ50. Centered on the controller, the solution assigns a unique "digital ID" to each unit, enabling visual management and control throughout the entire production process.

2.1 Tag Empowerment: Creating a Unique Digital ID for Controllers

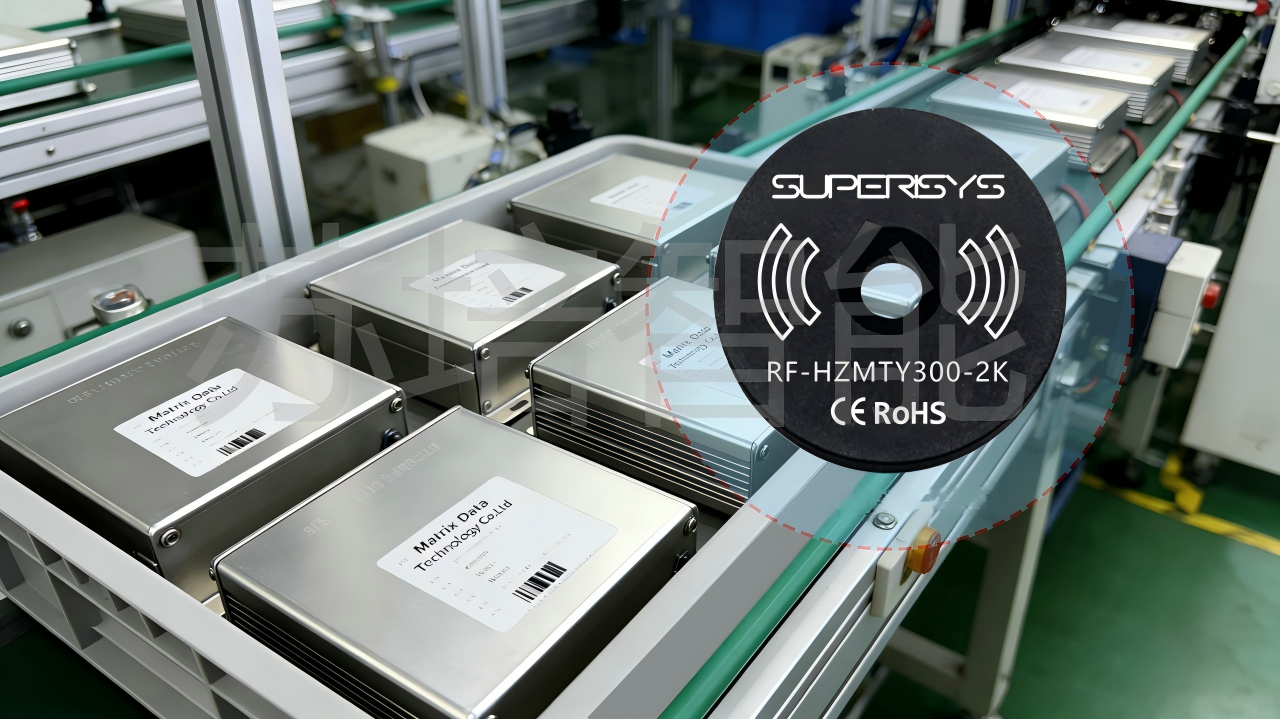

Superisys’s industrial-grade HF RFID tag RF-HZMTY300-2K is installed on pallets of the automated production line. Boasting water resistance, oil resistance, high temperature resistance and strong anti-metal interference capabilities, the tag is fully adaptable to the harsh environments across the entire controller production process. Embedded with a unique identification code, the tag is linked to the full lifecycle data of each controller—from material sourcing and assembly to testing and delivery. It also supports dynamic data writing and encryption protection, ensuring absolute information security and preventing data leakage.

2.2 Workstation Deployment: Realizing Automatic Process Data Collection

Superisys’s high-performance HF reader-writer RF-HZ50 is deployed at key workstations in the controller production process, including chip welding, parameter calibration, hardware-in-the-loop simulation and finished product debugging. As a controller passes through each workstation, the reader automatically identifies the information stored in the RF-HZMTY300-2K tag. It collects and uploads real-time data on process execution status, key parameters (e.g., calibration voltage, welding temperature) and test results without manual intervention, and synchronously writes the data to the tag’s local storage, achieving dual data backup.

For scenarios involving parallel production processes, the system automatically verifies the process sequence. In the case of process skipping or omission, it immediately triggers an audible and visual alarm and pauses the production line, enforcing standardized production procedures and eliminating the risk of non-compliant products entering subsequent processes from the source.

2.3 System Interconnection: Building an End-to-End Traceability System

Data collected via RFID is deeply integrated with the manufacturer’s MES system, forming a visual production dashboard that allows managers to monitor the production progress, equipment operation status and product qualification rate of each workstation in real time. Through the tag’s unique identification code, full information of a single controller can be quickly traced—including suppliers of core components, assembly operators, process parameters and test reports—realizing the goal of "one item, one code, full lifecycle traceability".

The system also conducts statistical analysis of production data and automatically generates reports on process qualification rates, equipment utilization rates and other key metrics. This provides solid data support for production optimization, helping the manufacturer accurately identify production bottlenecks and elevate overall production efficiency.

3.System Interconnection: Building an End-to-End Traceability System

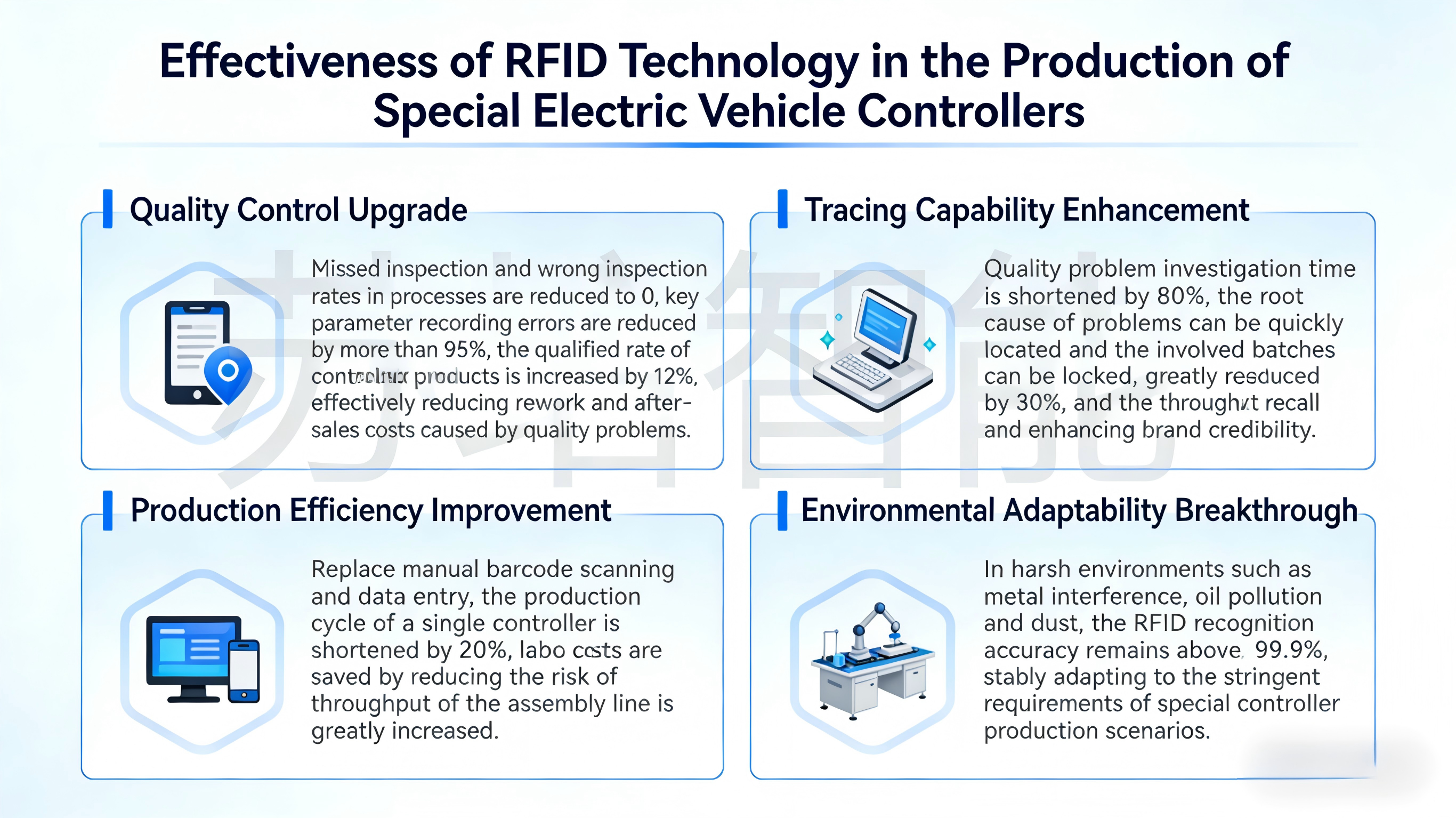

Following the implementation of the solution, the manufacturer has achieved a remarkable upgrade in its production management capabilities, with the core outcomes as follows:

Superisys's industrial RFID solution has not only addressed the long-standing pain points in the production of special electric vehicle controllers with technological innovation but also laid a solid digital foundation for the high-quality development of the industry, injecting sustained impetus into the intelligent upgrading of manufacturing production.
