RF-URDZ215L-EU-PN
Superisys
| Availability: | |
|---|---|
| Quantity: | |

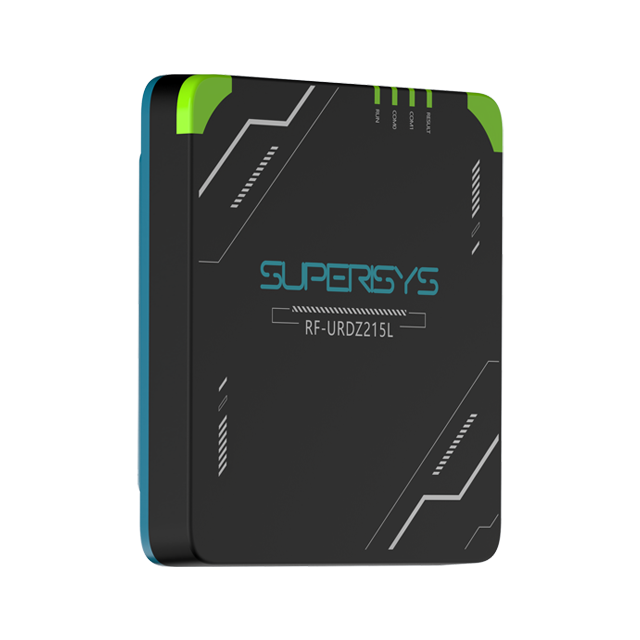

RF-URDZ215L UHF RFID Reader Suitable for Automobile automation, Logistics sorting and warehousing management.
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | RF-URDZ215L-PN | RF-URDZ215L-EIP | RF-URDZ215L-ECT |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | ||
| Working frequency | CN：920-925MHz（SRRC） | ||
| Output power | 5-30dBm adjust(Stepping 1dbm) | ||
| Communication interface | RS485*1 Ethernet*2 | ||
| Communication protocol | ProfiNet | Ethernet/IP | EtherCAT |
| Communication rate | 10/100M adaptive | ||
| mains input | 9-30V DC | ||
| Average current | < 0.5A (24V DC) | ||
| Indicator light | 6* LED Light | ||
| Boundary dimension | 215*215*58mm | ||
| Fixture type | 4Pcs*M6 screw hole | ||
| Canning material | Base: Aluminum Alloy, Top: PC +ABS | ||
| Shell color | Black | ||
| Operating temperature | -25 ~ 70℃ | ||
| Storage temperature | -40 ~ 85℃ | ||
| humidity | 5% ~ 95%RH(No condensation) | ||
| Waterproof and dustproof grade | IP65,EN60529 | ||
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | ||
| Electrostatic discharge immunity ESD | IEC610000-4-2 | ||
| Certificate | FCC , CE,SRRC,ROHS | ||
RF-URDZ215L UHF RFID Reader Suitable for Automobile automation, Logistics sorting and warehousing management.
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | RF-URDZ215L-PN | RF-URDZ215L-EIP | RF-URDZ215L-ECT |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | ||
| Working frequency | CN：920-925MHz（SRRC） | ||
| Output power | 5-30dBm adjust(Stepping 1dbm) | ||
| Communication interface | RS485*1 Ethernet*2 | ||
| Communication protocol | ProfiNet | Ethernet/IP | EtherCAT |
| Communication rate | 10/100M adaptive | ||
| mains input | 9-30V DC | ||
| Average current | < 0.5A (24V DC) | ||
| Indicator light | 6* LED Light | ||
| Boundary dimension | 215*215*58mm | ||
| Fixture type | 4Pcs*M6 screw hole | ||
| Canning material | Base: Aluminum Alloy, Top: PC +ABS | ||
| Shell color | Black | ||
| Operating temperature | -25 ~ 70℃ | ||
| Storage temperature | -40 ~ 85℃ | ||
| humidity | 5% ~ 95%RH(No condensation) | ||
| Waterproof and dustproof grade | IP65,EN60529 | ||
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | ||
| Electrostatic discharge immunity ESD | IEC610000-4-2 | ||
| Certificate | FCC , CE,SRRC,ROHS | ||
1. Excellent read and write performance
High receiving sensitivity (≤-85dBm): Support stably read weak signals and improve long-distance recognition capabilities.
8dBi high-gain antenna: enhance signal coverage and improve recognition accuracy.
Recognition distance up to 5M (passive tag), suitable for fast inventory at medium and long distances.
2. Multi-tag high-speed reading
Supports reading 120pcs/s, suitable for automobile production lines, logistics sorting, and warehouse management.
Adopts advanced anti-collision algorithm (based on ISO18000-6C protocol) to avoid multi-tag conflicts.
3. Global frequency band compatibility
Supports 860~960MHz ultra-high frequency band, which can adapt to frequency band specifications of different countries:
China (920~925MHz)
Europe (865~868MHz)
USA (902~928MHz)
4. Industrial-grade protection design
IP65 protection level: dustproof and waterproof, suitable for outdoor or harsh industrial environments.
Wide operating temperature range (-20℃~60℃), adaptable to different climatic conditions.
1. Smart Warehousing and Logistics
Inbound and Outbound Management: Installed at the warehouse gate or above a conveyor belt, this reader automatically records and verifies UHF-tagged goods (full pallets, full boxes) in batches, eliminating manual intervention and achieving near-100% accuracy and exceptional efficiency.
Inventory Counting: Workers can quickly complete large-scale inventory counts by using a handheld reader (assuming a handheld form factor is available) or by driving a forklift equipped with the reader between shelves.
2. Smart Manufacturing and Production Lines
Production Line Material Management: Installed above a production line workstation, it automatically identifies product pallets or carriers in motion, triggering corresponding assembly instructions or recording production information, enabling lean production and full-process traceability.
AGV/AMR Navigation and Management: Serving as the "eyes" of AGVs (Automated Guided Vehicles), it reads RFID tags on the floor or shelves for precise positioning and navigation.
1. Excellent read and write performance
High receiving sensitivity (≤-85dBm): Support stably read weak signals and improve long-distance recognition capabilities.
8dBi high-gain antenna: enhance signal coverage and improve recognition accuracy.
Recognition distance up to 5M (passive tag), suitable for fast inventory at medium and long distances.
2. Multi-tag high-speed reading
Supports reading 120pcs/s, suitable for automobile production lines, logistics sorting, and warehouse management.
Adopts advanced anti-collision algorithm (based on ISO18000-6C protocol) to avoid multi-tag conflicts.
3. Global frequency band compatibility
Supports 860~960MHz ultra-high frequency band, which can adapt to frequency band specifications of different countries:
China (920~925MHz)
Europe (865~868MHz)
USA (902~928MHz)
4. Industrial-grade protection design
IP65 protection level: dustproof and waterproof, suitable for outdoor or harsh industrial environments.
Wide operating temperature range (-20℃~60℃), adaptable to different climatic conditions.
1. Smart Warehousing and Logistics
Inbound and Outbound Management: Installed at the warehouse gate or above a conveyor belt, this reader automatically records and verifies UHF-tagged goods (full pallets, full boxes) in batches, eliminating manual intervention and achieving near-100% accuracy and exceptional efficiency.
Inventory Counting: Workers can quickly complete large-scale inventory counts by using a handheld reader (assuming a handheld form factor is available) or by driving a forklift equipped with the reader between shelves.
2. Smart Manufacturing and Production Lines
Production Line Material Management: Installed above a production line workstation, it automatically identifies product pallets or carriers in motion, triggering corresponding assembly instructions or recording production information, enabling lean production and full-process traceability.
AGV/AMR Navigation and Management: Serving as the "eyes" of AGVs (Automated Guided Vehicles), it reads RFID tags on the floor or shelves for precise positioning and navigation.
