| physical parameter |

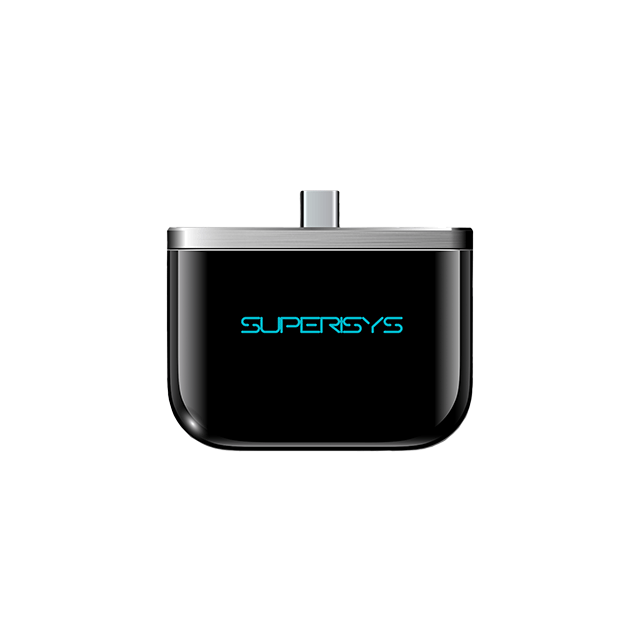

| product model | RF-UIMC6248L-USBC |
| size | 62.5mmx 48mm |
| main function |
| Air mouth agreement | IS018000-6C/6B, EPCC1G2GB/T29768-2013(Optional)GJB7377.1-2011/7377.1-2018A Various temperature and humidity label protocols |
| communication interface | TypeC,LightingORMicro UsB |
| performance parameter |
| working frequency | 840~928MHz |
| RF output power | 18dBm±1dB |
| work pattern | Fixed frequency or frequency hopping is optional |
| Forward modulation mode | PR-ASK,DSB-ASK |
| decode | FMO,Miller2/4/8 |
| Read distance | 0~0.3m(configuration-dependent) |
| Write distance | 0~0.1m(configuration-dependent) |
| Tag recognition speed | >100 times/second |
| Multiple label processing | 100 sheets /3 seconds |
| Baseband rate | 40k,160k,320k,400k |
| power supply | Typec,LightingORMicro UsB |
| Supply voltage (VCC) | +5.5V |
| power dissipation | 1.2W @ +18dBm |
