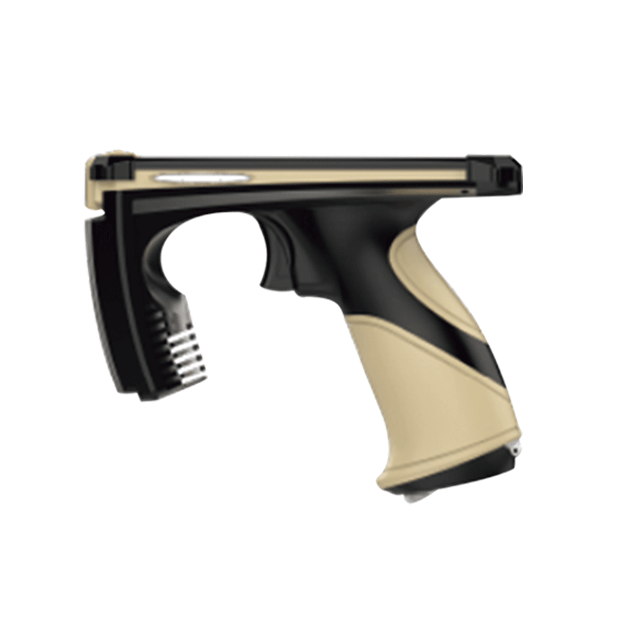

The handheld UHF RFID reader is a high-performance industrial IoT device based on the Android operating system.
With its strong data collection and processing capabilities, a variety of wireless communication interfaces
Superior standby capability, it can meet the logistical business needs of various industries.
| Product Model | RF-UH160 |
| Size | 160*82*129mm |
| Weight | 580g(include the battery) |
| Screen resolution | 5"/1280*720/IPS |
| Material | CNC aviation aluminum, PC+ABS(SABIC) |
| Touchscreen | 1.1mm thickened tempered glass, 10 points touch, can be operated with gloves |
| Front camera | 13 megapixels/ Auto focus /with flash |
| Speaker built-in | |
| Battery Type | Rechargeable polymer battery |
| Battery capacity | 6000mAh |
| Interface Type | Mirco USB / MOLEX Connectors/10,000 plug-in and unplug lifespan |
| CPU Type | Quad Core, Cortex -A17 |
| CPU Speed | 1.8Ghz |
| RAM+ROM | 2GB+32GB,4GB+64GB |
| Operating system version | Android 6.0 |
| Wifi Module | Support IEEE802.11a/b/g/n protocal |
| Bluetooth | Bluetooth 4.0 |
| 4G | Support |
| Operating frequency | 902-928MHz/865-868MHz（Customizable） |
| Output Power | 0-33dBm |
| Reading distance | ＞10m |
| Scan code function built-in | QR code |
| Protocal | EPC Global UHF Class 1Gen 28/ ISO 18000-6C, ISO18000-6B |
| Drop height | Withstand 2 meters natural drop |
| Working temperature | -20-+60℃ |
| Storage temperature | -30-+70℃ |
| Humidity | 5%-95% Non-Condensing |
| Protection level | IP64 |
