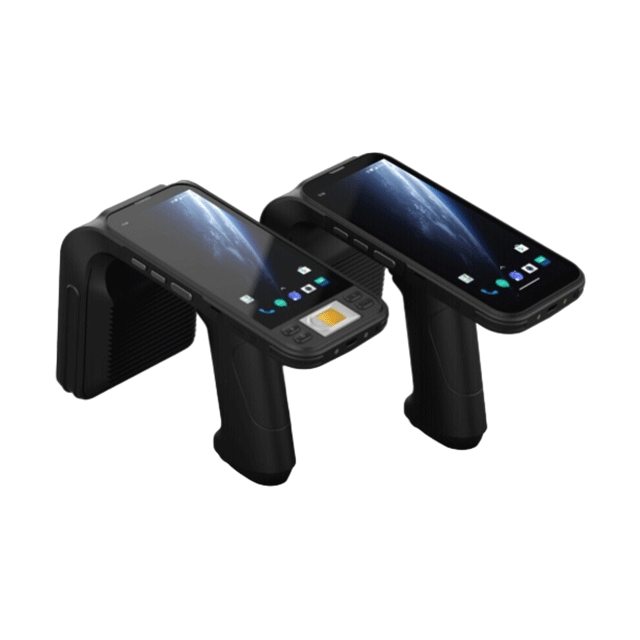

The handheld UHF RFID reader is a high-performance industrial IoT device based on the Android operating system.
With its strong data collection and processing capabilities, a variety of wireless communication interfaces
Superior standby capability, it can meet the logistical business needs of various industries.
High performance
8-core processor, industrial-grade components, ensure stable operation of code scanning and RFID functions.
Extremely long battery life
Large-capacity lithium polymer battery, magazine-type battery hot-swap system, easy and quick replacement, battery life is no longer limited,
Top UHF
RFID engine uses the independently developed module of the lmpinjlndyR2000 chip, which is well-known in the industry for its performance and reliability, and has excellent stability and extremely strong multi-tag recognition performance;
High protection
IP65 protection level, can effectively resist dust and splashing liquids
| Product Model | RF-UH178 |
| Screen resolution | 1280*720/2160*1080 |
| Size | 177*80.2*14.8mm |
| Weight | 598g(include the battery) |
| Touchscreen | Multi-touch, support wet hands, gloves operation |
| Front camera | 5 megapixels |
| Rear camera | 13 million pixels, flash support |
| Speaker built-in | 2 microphones, 1 for noise cancellation, on the back; 1 speaker; 1 earpiece |
| Battery Type | Rechargeable polymer lithium-ion battery |
| Battery capacity | 6700mAh |
| Interface Type | USB 2.0 type-C, OTG,Support TYPE-C headphones |
| CPU Type | octa-core |
| CPU Speed | 2.3Ghz |
| RAM+ROM | 3GB+32GB (optional 4GB+64GB/6GB+128GB) Android |
| Operating system version | Android 11.0 |
| Development language type | JAVA |
| SDK development interface | Terminal Software Development Tools |
| Wifi Module | Support IEEE802.11a/b/g/nvac protocol (2.4G/5G dual-band) |
| Bluetooth built-in | BT5.0(BLE) |
| Built-In | 2G: GSM 3G: WCDMA TD-SCDMA 4G: FDD-LTE TDD-LTE |
| GNSS built-in | Integrated GPS, GLONASS and BeiDou; internal antenna, Supports AGPS |
| Protocol Standards | EPC C1Gen2(1S018000-6C) |
| Operating frequency | 920-925MHz/902-928MHz/865-868MHz（Customizable） |
| Engine | CM710-1 based on lmpinj E710 chip R2000-1 Based on Jmpinj Indy R2000 chip |
| Output Power | 1W (30dBm, support +5~+30dBm adjustable) optional 2W (33dBm, for Latin America, etc.) |
| Antenna parameters | circular polarization 5dBi |
| Reading distance | Circular polarization up to 15 meters (outdoor open environment, Impinj Mr6 tag) |
| Poisoning rate | Up to 950 tags/s |
| Scan code function built-in | Support barcodes:UPC/EAN,Code128,Code39,Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,Codabar MSl, RSS Support QR code: QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US ostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KlX), etc. |
| High frequency RFID optional | 13.56Mhz, support 14443AVB; 15693 protocol, effective recognition distance 2-4cm |
| Drop height | Within the operating temperature range, all six sides can withstand multiple drops from a height of 1.5 meters to a concrete floor. |
| Working temperature | -20-+50℃ |
| Storage temperature | -40-+70℃ |
| Humidity | 95% Non-Condensing |
| Protection level | IP65 |
