Automated Guided Vehicles (AGVs) are the undisputed workhorses of modern smart factories and automated warehouses. From transporting heavy chassis on an automotive assembly line to moving delicate silicon wafers in a cleanroom, AGVs keep the supply chain flowing.
However, an AGV is only as effective as its navigation system. To operate autonomously and safely, an AGV must know its exact location at all times. While laser SLAM and vision-based navigation are popular, they often struggle in harsh industrial environments filled with dust, poor lighting, or optical obstructions.
To achieve absolute positioning and zero-error routing, modern logistics systems rely on Industrial RFID (Radio Frequency Identification). By deploying robust RFID tags along the driving path and equipping AGVs with high-performance readers, factories can achieve millimeter-level positioning. As a global leader in industrial communication, Superisys provides cutting-edge RFID solutions—such as the RF-HZ100L reader—that empower AGVs with unmatched precision, speed, and environmental adaptability.
The application of RFID in AGV navigation primarily serves to provide absolute path identification and location reference points. This significantly enhances the vehicle's positioning accuracy and operational flexibility.
The foundation of RFID navigation is the strategic deployment of passive HF (High-Frequency) RFID tags (such as Superisys 112Byte location tags) directly into or onto the factory floor. These tags are embedded at critical path nodes, including intersections, turns, workstations, and docking stations.
As the AGV drives over these nodes, the undercarriage-mounted Superisys RFID reader captures the tag's data in real-time. The tag transmits preset path instructions to the AGV's control system, triggering immediate mechanical responses such as "turn left," "slow down," or "stop and lift."
In the era of Industry 4.0, fixed routes are obsolete. Factories require flexible, modular production. Because RFID tags can be rewritten, the central control system can dynamically update the data on specific floor tags. By writing new destination codes or routing instructions into the tags, the AGV's path can be adjusted in real-time, allowing the fleet to seamlessly adapt to sudden changes in production schedules or floor layouts.
To guarantee 100% reading accuracy, the physical installation of the RFID system must adhere to strict engineering standards. Superisys provides the following guidelines for optimal AGV deployment:
Aisle Width Requirements: For straight driving channels, the aisle width must be at least 2000mm, leaving a minimum safety distance of 200mm on each side of the vehicle. For turning channels, using the midpoint of the front two wheels as the rotation reference, the aisle must be at least 4800mm wide.
Reader-to-Tag Distance: The RFID reader is installed beneath the AGV chassis, facing the floor. To ensure a flawless identification rate, the distance between the Superisys RFID reader and the ground tag must be kept at 100mm or less.
Communication Protocols: Superisys readers support highly flexible data transmission. Depending on the client's specific on-site requirements, the reader communicates with the AGV's onboard PLC via Serial ports (RS232/RS485) or standard Ethernet interfaces.
Before diving into the technical specifications, it is important to understand why AGV manufacturers overwhelmingly choose RFID for node positioning:
Low Cost & High Scalability: Passive RFID tags are highly affordable. Deploying hundreds or thousands of tags across a massive warehouse is highly cost-effective compared to installing complex optical reflectors.
Zero Maintenance: Passive tags require no batteries. They draw their operating power directly from the reader's RF field, meaning they can remain buried in the floor for years without maintenance.
Total Anti-Interference: Unlike vision cameras or lasers, radio frequency signals are completely unaffected by factory lighting changes, dirt, oil spills, or airborne dust.
Not all RFID readers are created equal. AGVs operate in highly challenging electromagnetic environments. The chassis of an AGV is a massive block of steel, and the factory floor is often reinforced with metal rebar—both of which severely degrade standard RF signals.
To overcome these physical limitations, Superisys has engineered four core proprietary technologies into their RFID product line, making them the ultimate choice for AGV integrators.

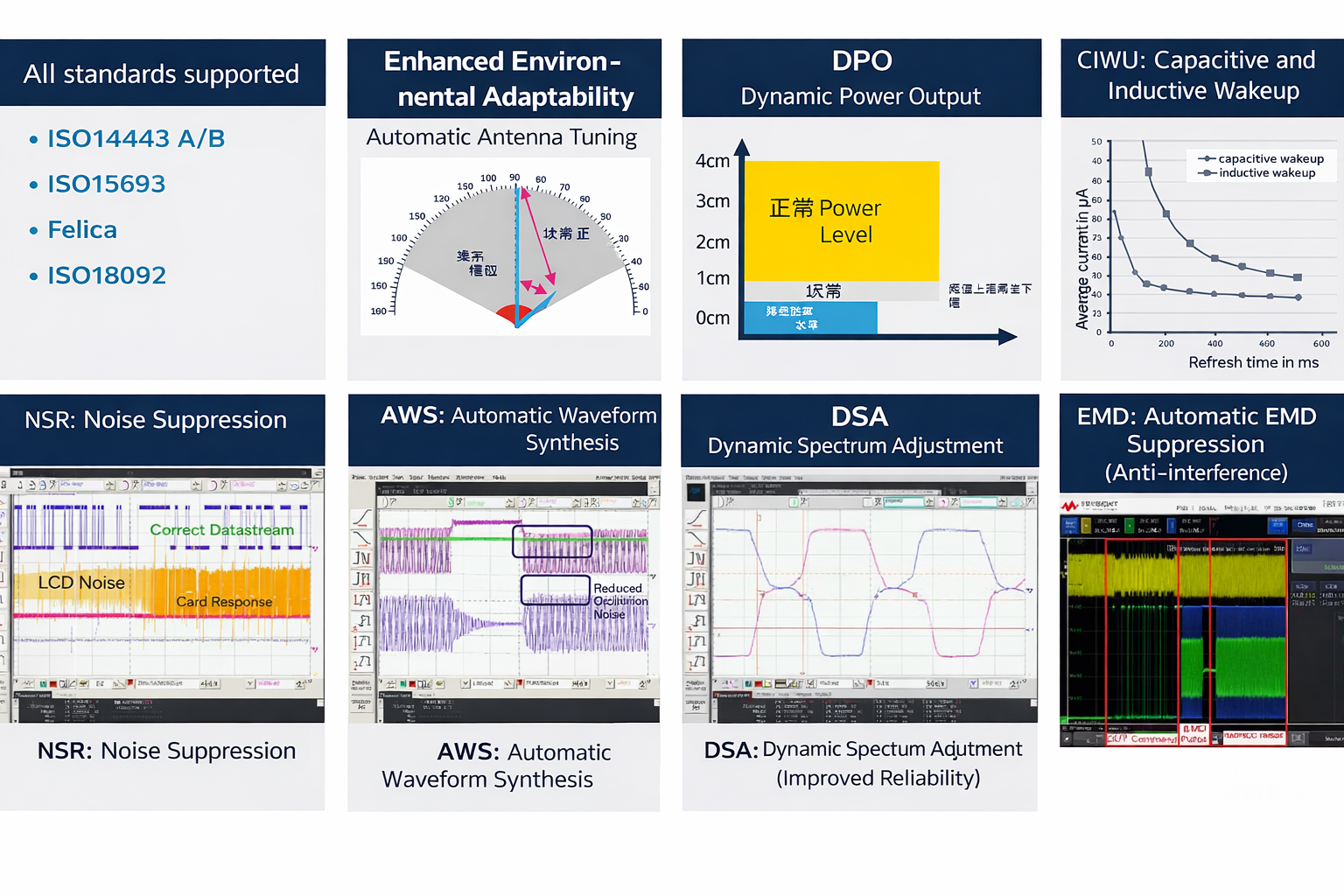

The Superisys platform is built to interface with virtually any global standard. It supports all major protocols, including ISO14443 A/B, ISO15693, Felica, and ISO18092.
Beyond standard compatibility, the internal architecture is packed with signal-enhancing algorithms:
NSR (Noise Suppression Receiver): AGVs are packed with electrical components (LCD screens, DC-DC converters, motors) that generate massive electromagnetic noise. The NSR technology actively filters out this localized noise, ensuring clean data transmission.
DPO (Dynamic Power Output) & CIWU (Capacitive and Inductive Wakeup): These features optimize power consumption while maintaining an aggressively strong reading field, ensuring the tag is read perfectly even when the AGV is moving at top speed.
AWS (Active Wave Shaping) & EMD Suppression: These algorithms automatically suppress environmental interference and adjust frequency slopes to guarantee data integrity.
This is the most critical feature for AGV applications. When an RFID reader is mounted close to the thick metal chassis of an AGV, the metal absorbs and detunes the RF field, drastically reducing the reading range.

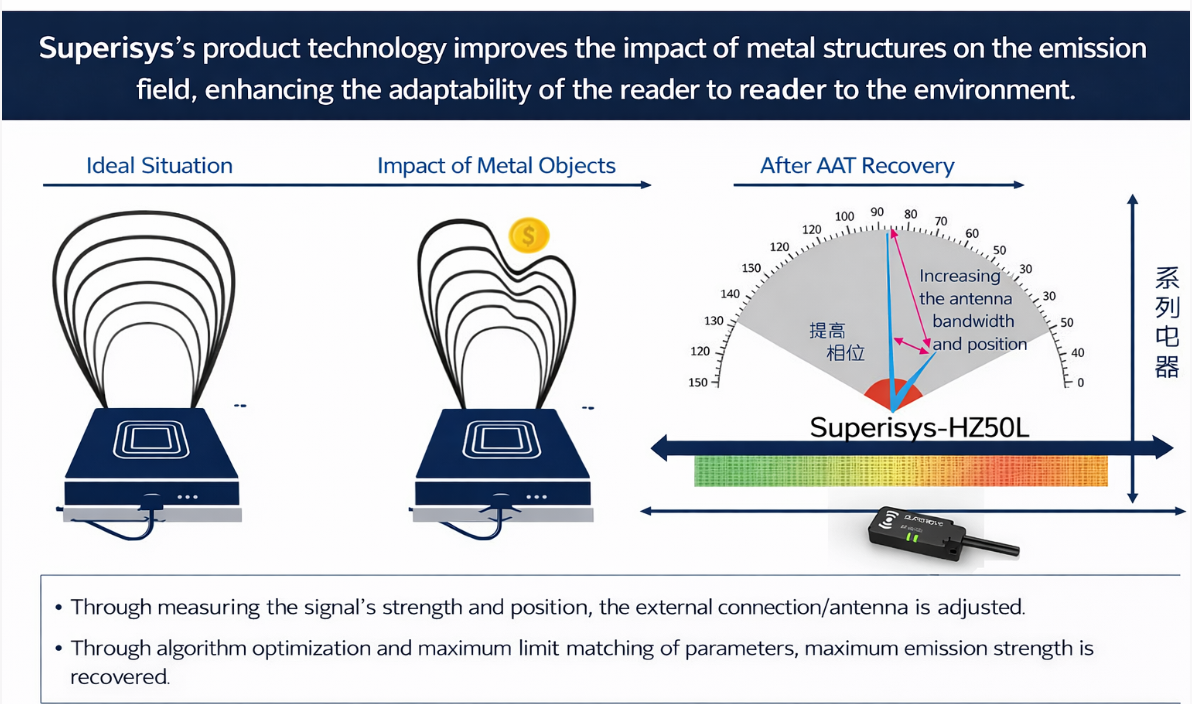

Superisys solves this physics problem with proprietary Automatic Antenna Tuning (AAT). The reader continuously measures the amplitude and phase of the received signal. If it detects that metal is detuning the field, the system's algorithm instantly adjusts the external parallel and series matching capacitors. This dynamic optimization completely compensates for the metal's impact, restoring the emission field strength to its maximum potential. With AAT, Superisys readers maintain peak performance regardless of the vehicle's metallic structure.

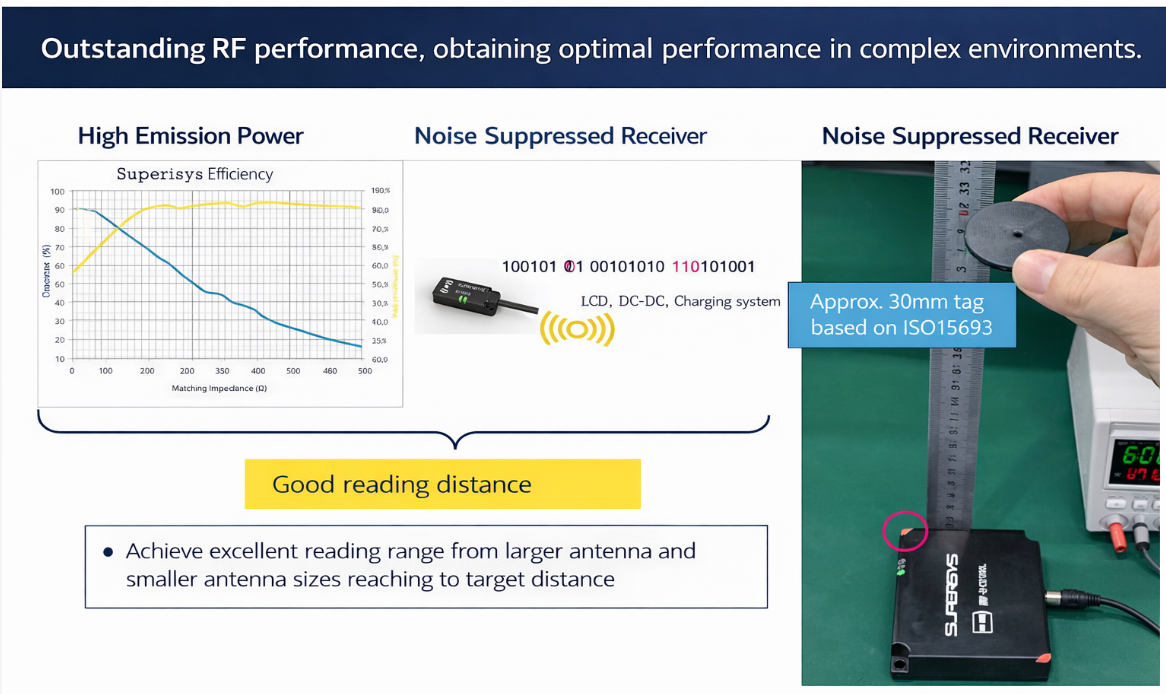

Thanks to optimized impedance matching and the aforementioned noise suppression, Superisys readers deliver extraordinary RF power. Even with highly compact antenna sizes designed to fit into tight AGV undercarriages, the system achieves remarkable reading distances. When interacting with standard ISO15693 tags, the Superisys reader can achieve a stable read range approaching 30 centimeters. This generous read range provides AGV engineers with massive mechanical flexibility during chassis design and suspension travel.
An AGV's efficiency is determined by its speed. If an RFID reader is slow, the AGV must drastically reduce its speed—or even stop completely—every time it crosses an intersection to ensure the tag is read. This destroys warehouse throughput.
Superisys has engineered its read/write platform specifically for high-velocity industrial scenarios. It far outperforms standard ISO15693 readers on the market. In a head-to-head performance benchmark against both domestic competitors and premium imported European brands, Superisys demonstrated unmatched millisecond-level data processing.
Real-World Success Story:
Because of this extreme high-speed read/write capability, Superisys was officially selected as the designated RFID brand for the MCU chip production line of a famous Chinese technology giant. In this highly demanding, high-speed automated environment, Superisys successfully replaced a top-tier German brand (Siemens), proving that our technology delivers world-class speed and flawless accuracy.
When integrating components into industrial vehicles, safety and compliance are non-negotiable. Superisys guarantees peace of mind by adhering to the strictest global regulatory standards.
Our industrial RFID products hold a comprehensive suite of international certifications, ensuring they are ready for deployment in North America, Europe, and beyond:
CE (EMC: EN 301 489-1/3; Radio: EN 300 330; Safety: IEC 62368-1)
FCC (Part 15C for the North American market)
IC (RSS Gen and RSS 210)
RoHS Compliance
Ecolab Certification: Validating that our robust enclosures can withstand aggressive industrial cleaning agents and washdown environments, perfect for food, beverage, and pharmaceutical AGV applications.
In the competitive landscape of automated logistics, the precision of your AGV fleet dictates the efficiency of the entire factory. Standard navigation methods are no longer enough to guarantee 100% reliability in harsh, complex environments.
By integrating Superisys Industrial RFID technology, AGV manufacturers can equip their vehicles with absolute location awareness. Backed by Automatic Antenna Tuning (AAT) to defeat metal interference, superior high-speed reading capabilities, and a full suite of global certifications, Superisys is the ultimate partner for next-generation automated guided vehicles.
Stop compromising on navigation accuracy. Elevate your AGV performance and future-proof your smart logistics systems with Superisys today.
[Call to Action]
Ready to upgrade your AGV navigation architecture? Discover the full specifications of the RF-HZ100L Reader or contact our global engineering team at jayne@superisys.com.cn for a customized integration consultation.
