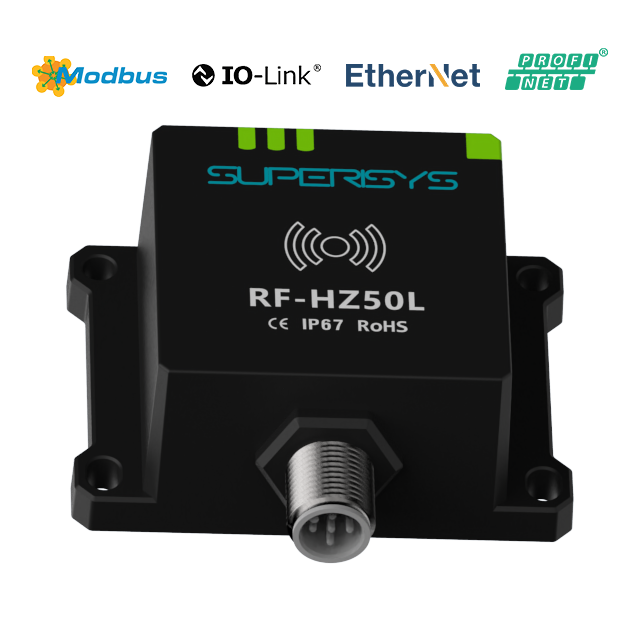

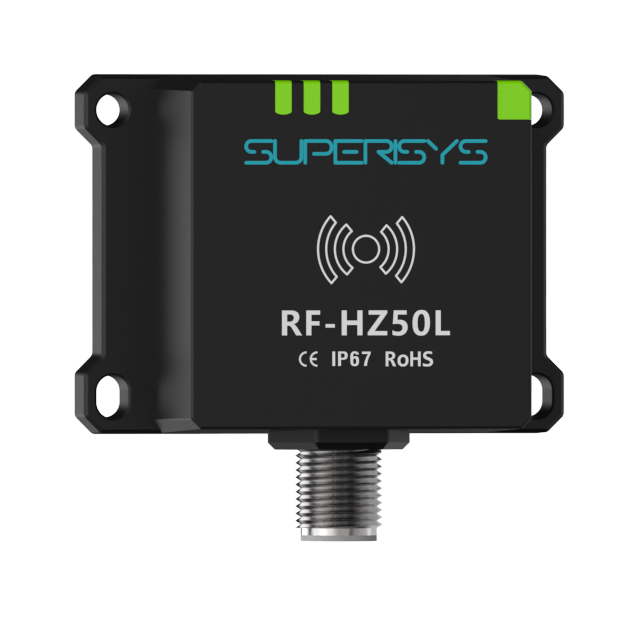

Ethernet/IP Profinet 13.56MHz Passive High Frequency RFID Reader/Write

Name: Ethernet/IP Profinet 13.56MHz Passive High Frequency RFID Reader/Write
Brand: Superisys
Rating: 5.0 (52 reviews)

Read range 0-8cm,IP67

Support Ethernet/IP Profinet protocol

-40-80℃

68.4*50*30mm

Model:
RF-HZ50L-EIP/PN
Brand:
Superisys

Availability:

Quantity:



Inquire Add to Basket

Product Introduction

Application

Photovoltaic New Energy

An RFID tag RF-HZMTY300-2K is embedded in each flower basket. An RFID reader RF-HZ50L-R4 product, along with an industrial RFID bus module, is installed at the loading/unloading and transfer points of each processing machine in each process step. When the carrier arrives at the loading/unloading or transfer point, the RFID reader reads the unique information of the RFID tag in the flower basket. Combined with the MES management system, the product information of the silicon wafers in the flower basket is obtained, realizing accurate tracking and effective management of the entire silicon wafer production process.

Healthcare industry：

Used for identifying and writing production process flows for medical product production lines, enabling product processing guidance and full-process quality traceabilit.

HZ 50 医疗行业

Electronic products packaging production line

手机包装

Mobile phone packaging production line

手机包装行业 33

Mobile phone packaging production line

Non-contact penetration reading: No need to open the box to scan; packaging boxes pass through seamlessly.
Millisecond-level processing: Recognition as fast as 10ms, far surpassing manual processing efficiency.
Dynamic data writing: Process status and component information are updated in real time, giving the packaging box "memory."

Economic benefits

hz50 医疗 3

0-10cm Read Distance M12 Screw Installation13.56MHz HF RFID Reader

Logistic Warehouse High Frequency Performance Industrial HF RFID Reader

6cm Read Range Precision type13.56MHz Passive High Frequency RFID Reader Writer

IP37 M30 Size High Frequency Precision Industrial RFID Reader

30mm Range M12 Passive 13.56MHz HF RFID Reader/Writer Head

RELATED BLOGS

ABOUT US

Superisys (Wuhan) Intelligent Technology Co., Ltd., founded in 2018, is a professional manufacturer and service provider of industrial identification, industrial communication, industrial sensors and data solutions.

QUICK LINKS

CONTACT US

+86-13971499887 (Ms.Jayne Yang)

jayne@superisys.com.cn

+8613971499887

+86-13971499887

12#-1B, Yangluo Liandong U Valley Elctronic Tech Industrial Park, #36 Jinfa Avenue, Intelligent Manufacture Industrial Park, Changjiang New District, Wuhan, Hubei, China.

WeChat

product model	RF-HZ50L-EIP	RF-HZ50L-PN
wireless protocol	ISO 15693
working frequency	13.56MHz
wireless speed	26.48kbps
Read distance	0~80mm(related to labels)
communication interface	Ethernet
communication protocol	Ethernet/IP,Modbus tcp	Profinet,MODBUS TCP
Communication rate	10/100M Adaptive
Supply voltage	9~30VDC
Power consumption	3W
pilot lamp	4 LED indicators
Form factor	68.45030mm
Fixed type	4pcs*M4 Screw
Housing material	PC+ABS
Product interface	M12 Acode 8pin male
Shell color	black
Total weight	90g
Operating temperature	-25℃～70℃
Storage temperature	-25℃～85℃
humidity	5%～95%RH(No condensation)
Waterproof and dustproof rating	IP67, EN 60529
Vibration resistant	2 mm (f= 5…29.5 Hz ) , EN 60068-2-6 7 gn (f= 29.5…150 Hz) , EN 60068-2-6
Conducted immunity (CS)	3V, over A class (including main frequency) 10V, over A class (except main frequency)
Electrostatic discharge immunity ESD	Contact discharge, 8KV, over class A Air discharge 15KV, over class A IEC 61000-4-2
Certificate	CE

Parameter	Specification
Minimum Order Quantity	one
Price	receive bargaining
Delivery Time	1-2 work days
Payment Terms	T/T, Western Union
Supply Ability	1000 per day
